2 Axles 45ft Yard Terminal Trailer

Terminal Trailer Description :

Yard terminal trailer are used in terminals and ports around the world and are manufactured from high-quality steel and components for high product quality and long service life. Standard yard terminal trailer trailer capacities range from 40 to 120 tons to meet the needs of a variety of industries and applications.

TITAN yard terminal trailer for sale are reliable and durable in structure, simple in design, recognizable in color, and we can provide customizable options according to customer transportation needs.

2 Axles 45ft Yard Terminal Trailer for Sale in Congo

2 Axles 45ft Yard Terminal Trailer for Sale in Congo

45ft Yard Terminal Trailer Specification :

Model: 2 axle 45ft yard terminal trailer

Transport: container or bulk cargo

Loading capacity: 40-60 Tons

Overall dimension: 12500mm * 2480mm *1470mm

Walking system：

Axles: 2 axles , 13t/16t, FUWA/ BPW/TITAN

Suspension: Heavy duty mechanical suspension

Spring Leaf: 90(Width)mm*13(Thickness)mm*10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Tire: 8 units, 12.00R22.5 or 315/80R22.5

Accessories :

Twist Locks: 4,8,12 sets (lifting or screw type)

Langing gear: JOST/FUWA Brand

Traction Pin : Optional

ABS: Optional

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

LED：LED lights

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

Advantages of Yard Terminal Trailer :

1. The 45ft yard terminal trailer can carry one 40ft container, two 20ft containers or one 20ft container at the same time. If you use a used intermodal yard terminal trailer can transport not only containers but also some other cargo.

2. All spare parts used by TITAN  yard terminal trailer for sale are world-renowned brands. Such as FUWA/BPW axle, JOST landing gear, Wabco braking system, etc. High-quality container locks can be used repeatedly for a long time, with sufficient strength to ensure the stability and safety of the goods.

3. The material of the  yard terminal trailer is made of customized high-strength steel, and its quality and performance are stable. Adopting the process design of excellence, and controlling the quality inspection layer by layer, the performance of the product can be maximized, and its service life can reach the highest standard in the industry.

4. TITAN yard terminal trailer for sale adopts advanced production technology, excellent quality and perfect after-sales service, and has won good evaluation in the special vehicle industry and has also been unanimously recognized by customers.

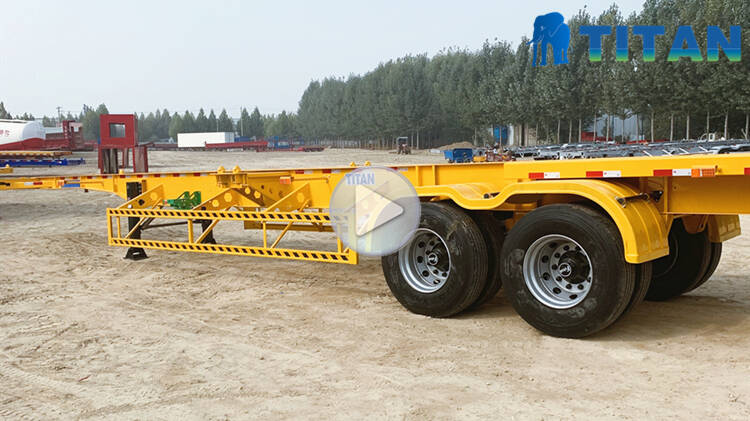

Through these videos, you can learn about different types of container chassis trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
