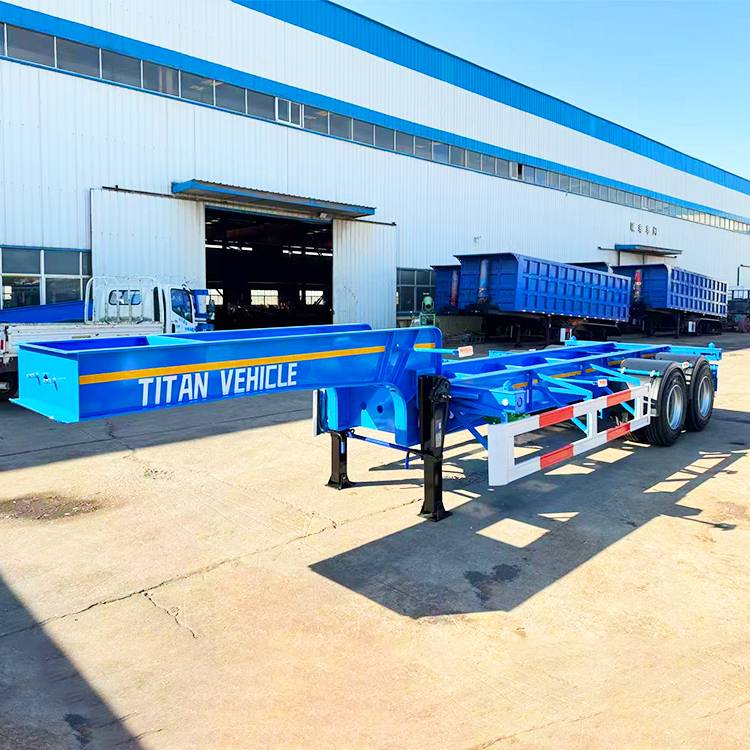

20 Ft Container Chassis

Name: 20 Ft Container Chassis
Availability: InStock
Rating: 0.00 (0 reviews)

This 20 ft container chassis for sale in Mexico is designed to carry 20-foot containers and possesses superior load-bearing capacity.

SKU:

MPN:

Brand:

Description of 20 Ft Container Chassis

This 20 ft container chassis for sale in Mexico is specifically designed for the frequent transshipment needs of terminal yards and urban distribution. Its short wheelbase significantly reduces the vehicle's turning radius, providing excellent maneuverability in narrow warehouse aisles and busy port areas.

The load-bearing points of the main beams in this 20 ft container chassis for sale in Mexico have been precisely calculated and directly applied to the chassis's reinforced sections, ensuring stable container support. This targeted structural design ensures that the chassis maintains excellent fatigue resistance and driving stability under long-term heavy-duty conditions.

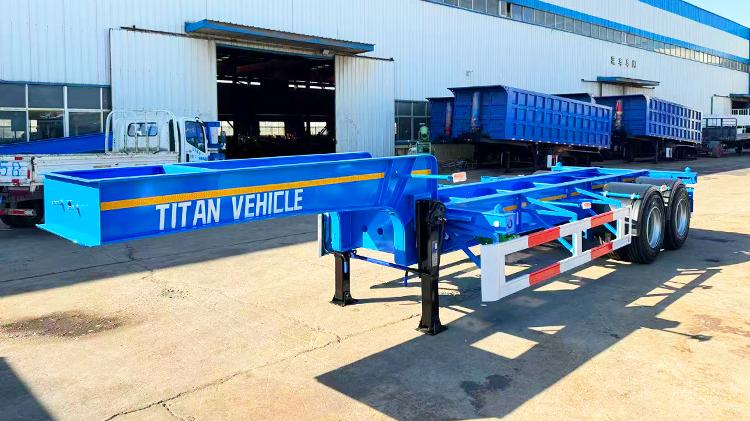

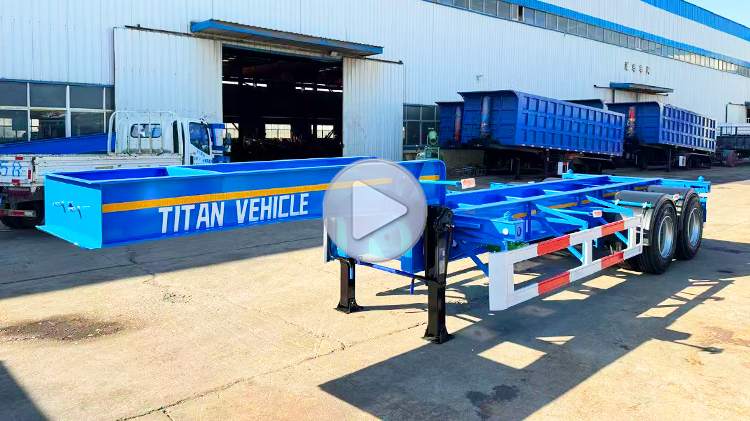

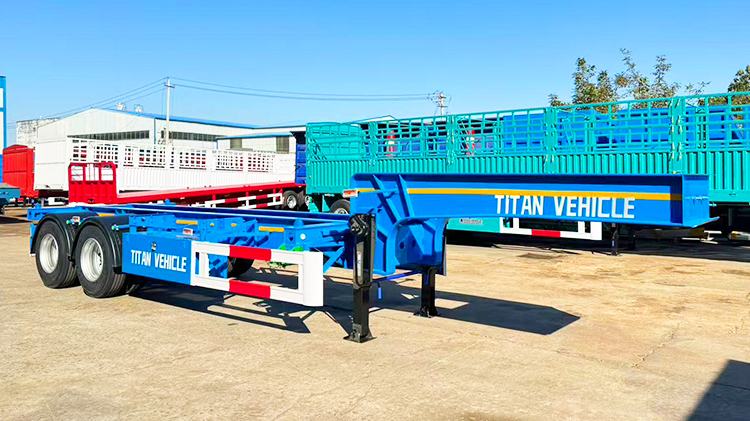

20 Ft Container Chassis for Sale in Mexico

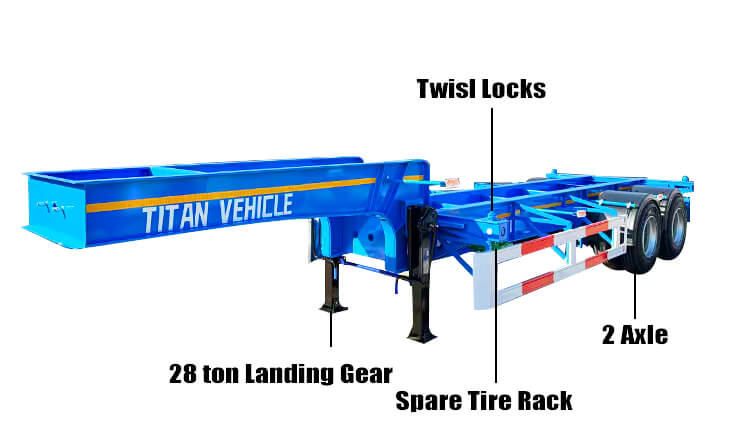

Specification of 20 Ft Container Chassis

Dimension(mm): 7000x2500x1500mm

Loading capacity(ton): ≤40T

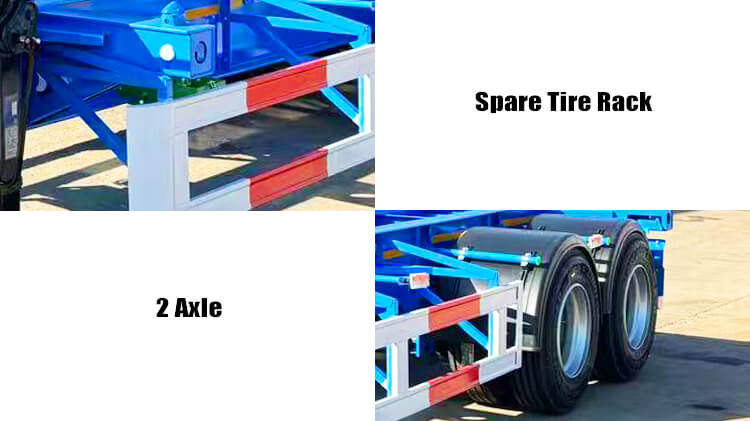

Axles: 2 axles, 13

Tire: 8 units, 12R22.5

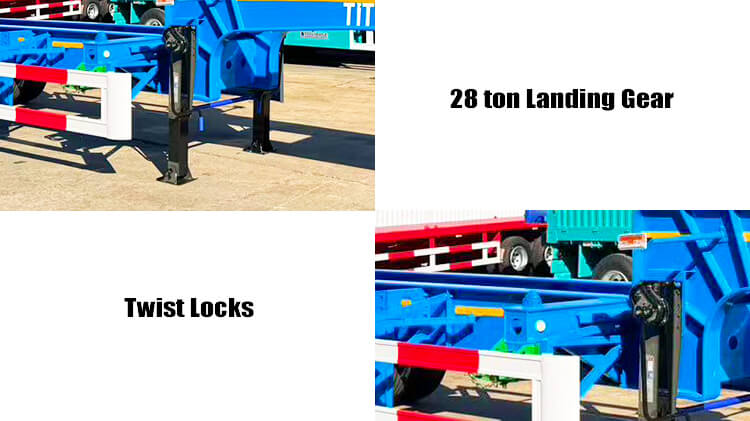

Landing Gear: 28 ton Landing Gear

Suspension: Mechanical suspension

Advantages of 20 Ft Container Chassis

1. The main beams of this 20 ft chassis for sale in Mexico are made of high-quality, high-strength manganese steel and welded as a whole using automated submerged arc welding. This ensures the uniformity and penetration of the welds, giving the chassis trailer higher structural strength and toughness when subjected to the instantaneous impact of container loading and unloading, extending the trailer's service life.

2. This 20 ft chassis for sale in Mexico is equipped with four cast steel rotary locks conforming to international ISO standards. The locking mechanism is precisely designed, operates flexibly, and locks reliably, ensuring the container remains firmly connected to the chassis during high-speed travel, emergency braking, or severe vibrations, protecting cargo and transportation safety.

3. This 20 ft chassis for sale in Mexico achieves a scientific distribution of cargo weight between the trailer axle and the tractor unit through precise layout of the two axle positions. This balanced load distribution not only improves the tractor unit's driving grip but also reduces uneven tire wear, allowing the chassis to maintain a stable driving trajectory even under full load.

4. Considering the high humidity and salt spray characteristics of the port environment, this 20 ft chassis for sale in Mexico undergoes sandblasting pre-treatment for rust removal, followed by the application of primer and high-performance topcoat. This multi-layer coating process provides excellent corrosion protection, effectively resisting the erosion of the steel structure by extreme weather conditions and reducing long-term maintenance costs.
