3 Axle 60 Tons Drop Side Trailer

Drop Side Trailer Description :

The drop side trailers is a semi trailer with a fence structure in the cargo part. Wide range of uses, mainly suitable for medium and long-distance transportation of medium-heavy and bulk goods, with strong applicability, it has become the first choice for medium and long-distance freight vehicles.

The TITAN 3 axle 60 tons drop side trailer body is made of high-quality steel, advanced technology, and strict production. The whole drop sided trailer has a reasonable structure, reliable performance, easy operation and beautiful appearance.

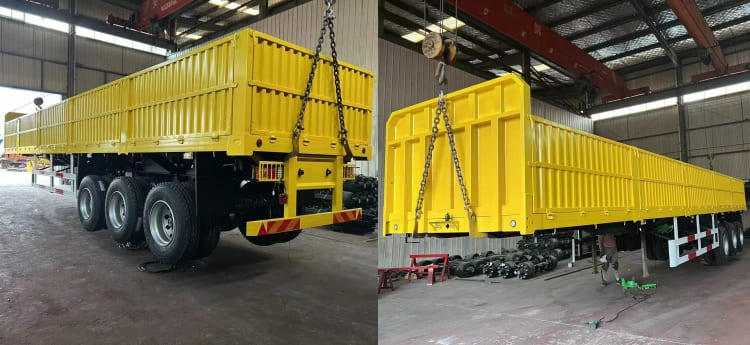

 3 Axle 60 Tons Drop Sided Trailers for Sale in Tanzania

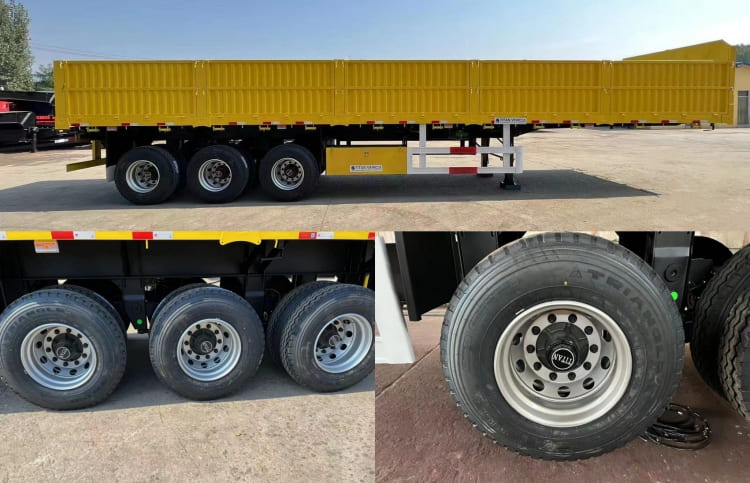

 3 Axle 60 Tons Drop Sided Trailers for Sale in Tanzania

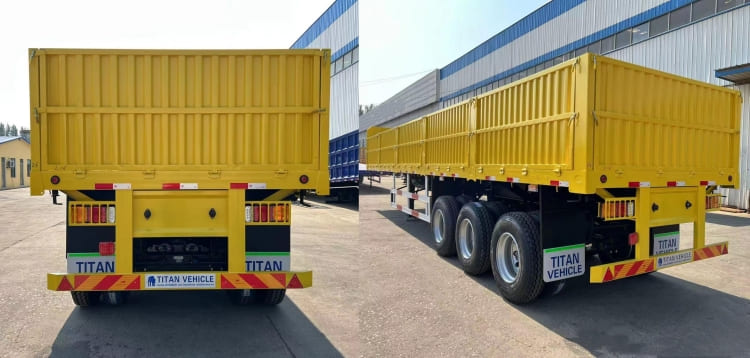

 3 Axle 60 Tons Drop Sided Trailers for Sale in Tanzania

3 Axle Drop Side Trailer Specification :

Model: 3 axle 60 ton drop side trailer

Dimension(mm): 13000x2500x3050mm

Trailer Sides: 1500mm

Loading capacity(ton): 60-80T

Frame :

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Walking system :

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Tare Weight: About 7.6T

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Accessories ：

Landing Gear: JOST brand D200T or TITAN brand 28tons(double-speed)

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

60 Tons Drop Side Trailer Shipping Diagram :

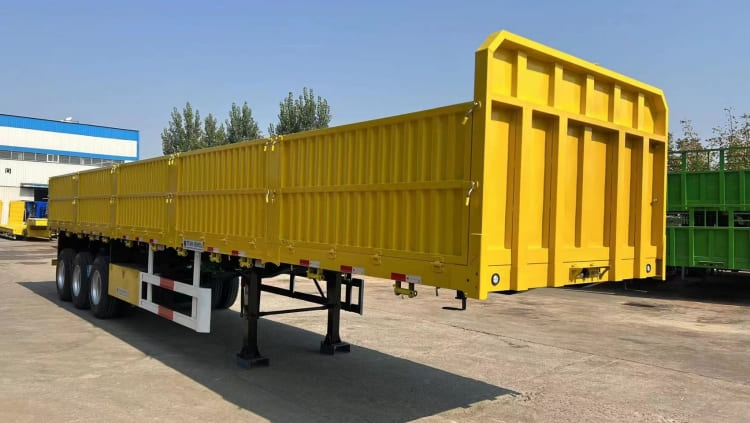

 3 Axle 60 Tons Drop Sided Trailers for Sale in Tanzania

Through this video, you can learn about different types of sidewall semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
