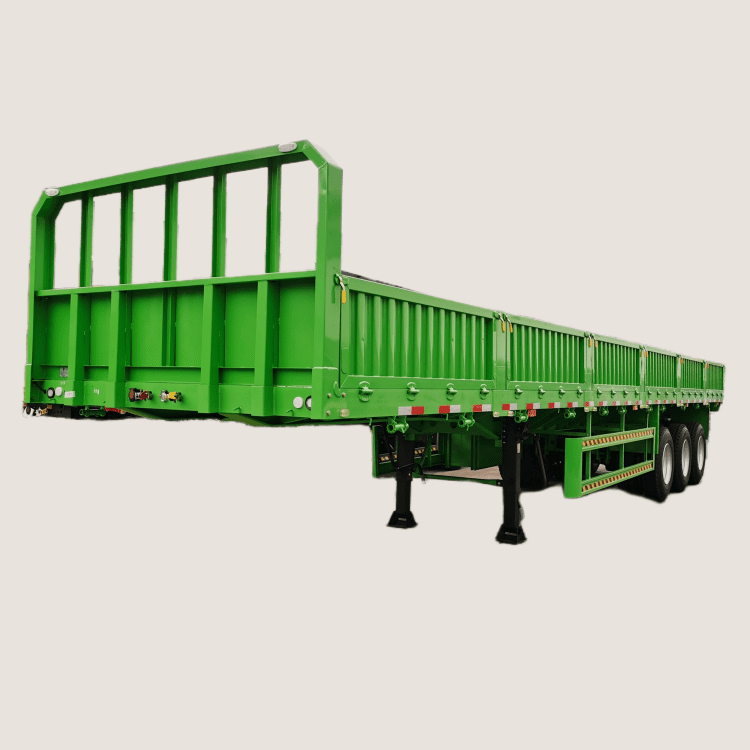

Tri Axle 60 Ton Side Wall Bulk Cargo Trailer

Side Wall Trailer Description :

A side wall trailer for sale is a type of vehicle that is usually modified on the basis of a flat bed container semi trailer, by welding the height of the fence according to the size and characteristics of the cargo. Due to its more flexible loading capacity and lighter dead weight, it is versatile and practical.

TITAN as a professional semi trailer suppliers and exporters can provides 2/3/4 axle side wall bulk cargo trailer with different loading ability to meet your transport need. And the tri axle 60 ton side wall trailer for sale is the most popular products in TITAN.

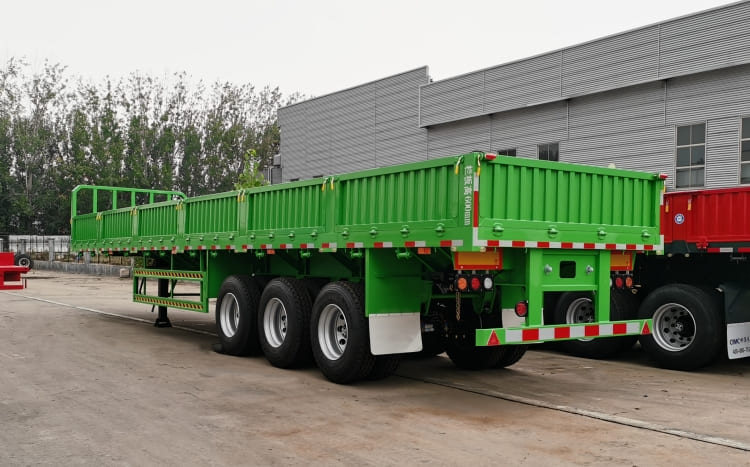

Tri Axle 60 Ton Side Wall Bulk Cargo Trailer for sale in Panama

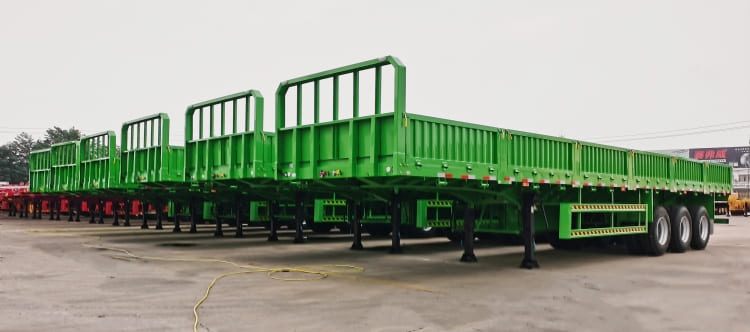

Tri Axle 60 Ton Side Wall Bulk Cargo Trailer for sale in Panama

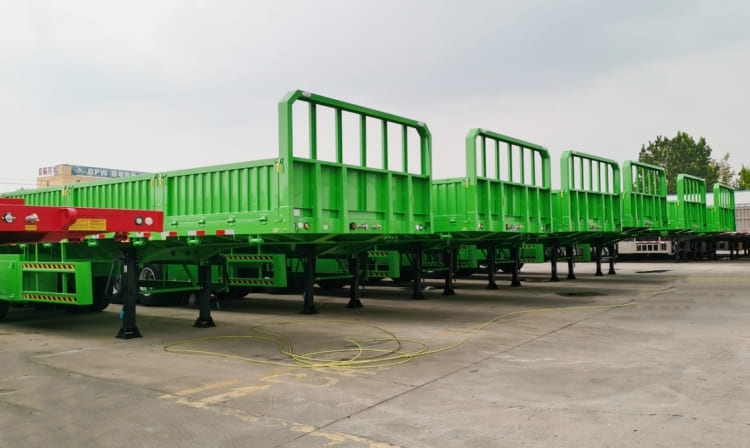

Tri Axle 60 Ton Side Wall Bulk Cargo Trailer for sale in Panama

Tri Axle Side Wall Trailer Specification :

Model: 3 axle 60 ton side wall trailer

Dimension(mm): 13000mmx2650mmx3050mm

Trailer Sides: 1500mm

Loading capacity(ton): 60-80T

Frame :

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Walking system :

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Tare Weight: About 7.6T

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Accessories ：

Landing Gear: JOST brand D200T or TITAN brand 28tons(double-speed)

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

Tri Axle 60 Ton Side Wall Bulk Cargo Trailer for sale in Panama

Side Wall Trailer for Sale Advantages :

1. TITAN Vehicle uses high-strength steel to manufacture side wall bulk cargo trailer, so that the trailer has higher bearing capacity and longer service life, and the 60 ton side wall trailer is not easily deformed.

2. TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam of side wall trailer for sale, so the main beam is more stronger and more durable. Greatly improve the load capacity of the tri axle side wall trailer.

3. The accessories are all products of well-known manufacturers at china and abroad, and are purchased, inspected and used in strict accordance with the requirements of the quality system documents, which greatly improves the performance of the side wall trailer for sale.

4. Polyurethane paint makes the whole side wall trailer for sale more beautiful, effectively protects the body from rusting and prolongs the service life of the whole side wall bulk cargo trailer.

Through this video, you can learn about different types of sidewall semi trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
