Tri Axle Livestock Fence Truck Semi Trailer

Fence Trailer Description :

Fence truck semi trailer are popular with logistics companies due to their versatile applications. It is used to load various products and materials such as sand, bags, poultry, etc. There are also some bulk cargoes that are very widely used in the transportation industry.

TITAN tri axle fence truck semi trailer for sale adopts a fence structure design. We also can provide 2/3/4 axles with a loading capacity of 30/40/60/80/100 tons to neet your different need. The height of the fence can be customized according to your needs.

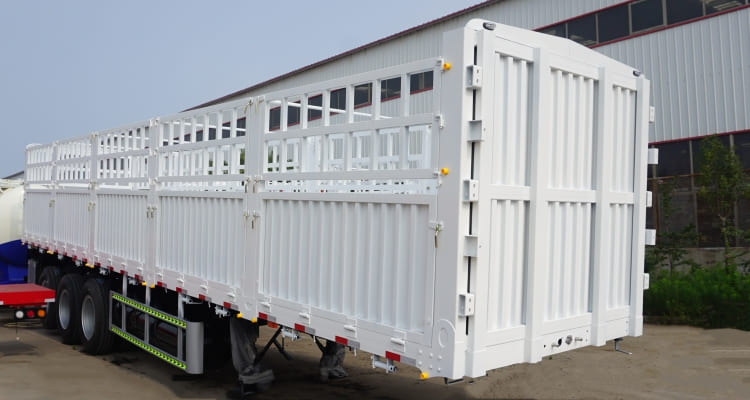

Tri Axle Livestock Fence Truck Semi Trailer for Sale in Zimbabwe Harare

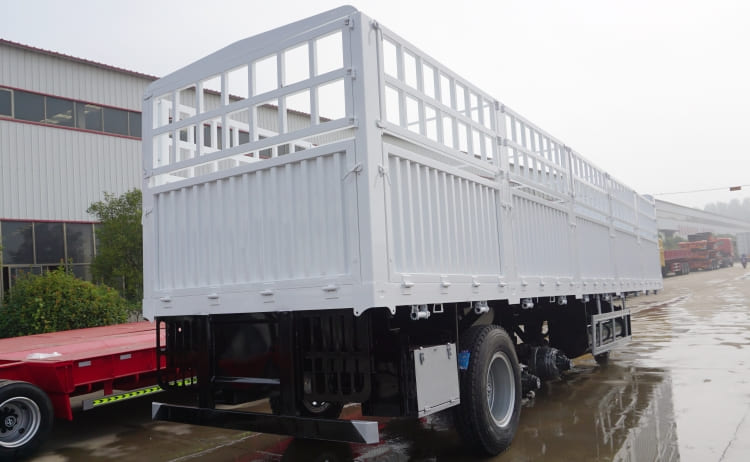

Tri Axle Livestock Fence Truck Semi Trailer for Sale in Zimbabwe Harare

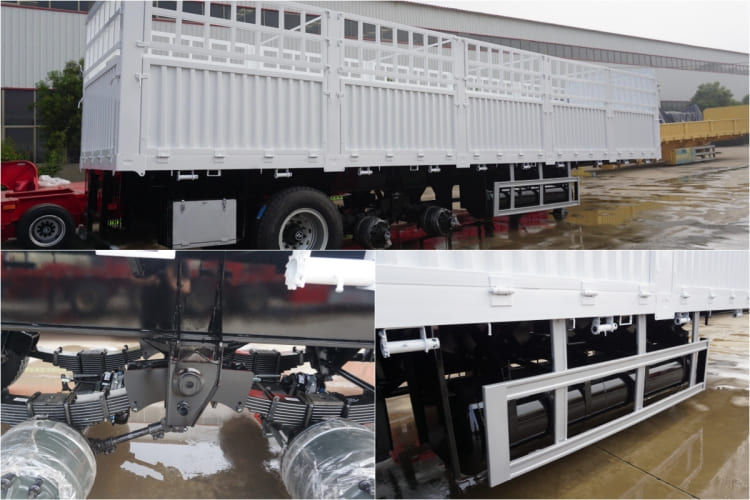

Tri Axle Livestock Fence Truck Semi Trailer for Sale in Zimbabwe Harare

Livestock Fence Semi Trailer Specification :

Model: tri axle fence truck semi trailer

Dimension(mm): 13000mmx2600mmx3490mm

Trailer Sides: Optional

Loading capacity(ton): 60-80T

Frame :

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Walking system :

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Tare Weight: About 7.6T

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Accessories ：

Landing Gear: JOST brand D200T or TITAN brand 28tons(double-speed)

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

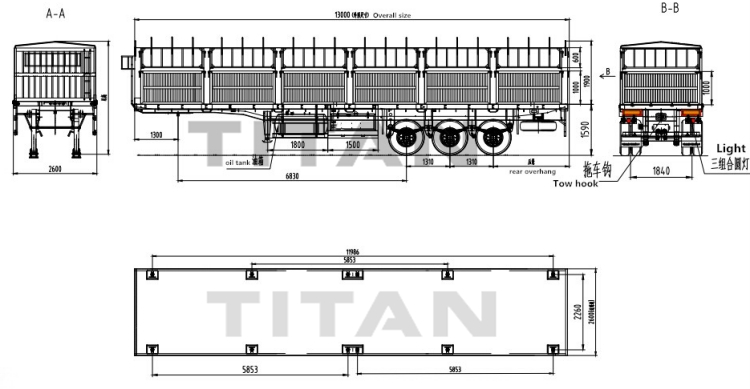

Tri Axle Livestock Fence Truck Semi Trailer for Sale in Zimbabwe Harare

Fence Truck Trailer Advantages :

1. The bottom plate of the fence truck trailer for sale is a non-slip checker plate, which increases the friction force, and the semi-trailer will be more stable when loading bulk goods, reducing damage to the goods during transportation.

2. The accessories are all products of well-known manufacturers at home and abroad. They are purchased, inspected and used in strict accordance with the requirements of the quality system documents, which greatly improves the performance of the livestock fence semi trailer.

3. The fence truck trailer for sale is made of high-quality high-strength steel and welded in strict accordance with industry standards. It is convenient and practical, safe and reliable, and improves the service life of the tri axle fence semi trailer.

4. In the appearance design of the fence semi trailer compartment, we strive for beautiful appearance, reasonable internal structure, advanced technology, and the height of the fence can be freely selected.

Through this video, you can learn about different types of fence semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
