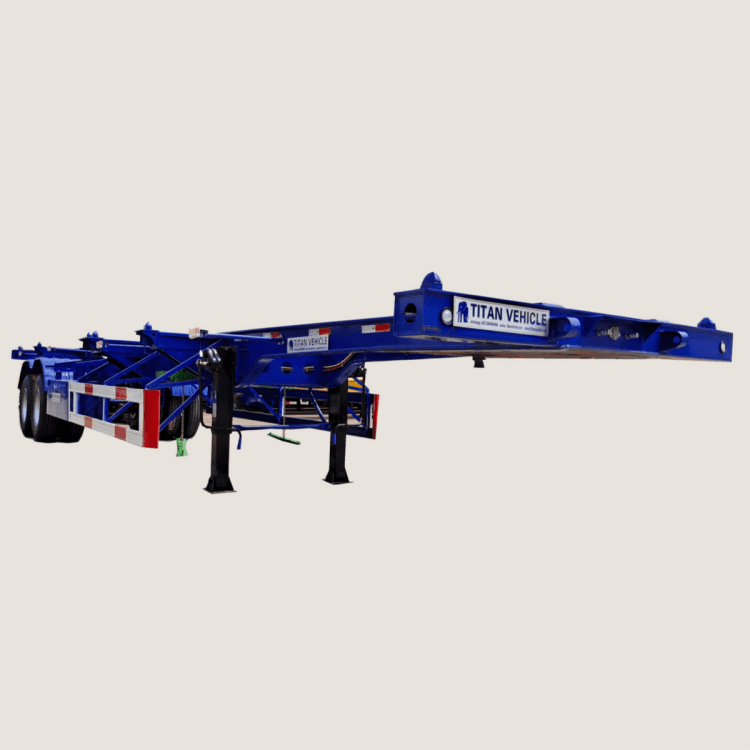

2 Axle 40 Ft Container Skeletal Semi Trailer

2 Axle 40 Ft Container Skeletal Semi Trailer

6700 USD

So far, TITAN has been committed to producing semi-trailer products for export for more than ten years. The main exporting countries and regions include Africa, Southeast Asia and South America. 2 axle 40 ft skeletal semi trailer is one of most advantaged products.

SKU: 2 Axle 40 Ft Container Skeletal Semi Trailer
MPN: TITAN9800015
Brand: TITAN

Skeletal Trailer Description :

The TITAN container skeletal trailer has the optimal design scheme, reasonable structure, reliable operation and beautiful appearance, which can exert the maximum potential of the whole container skeletal semi trailer for sale.

The variety of skeletal semi trailer products can meet the individual needs of customers. According to customer needs, we can produce gooseneck, skeleton, flat, low flat and other structures skeletal semi trailer.

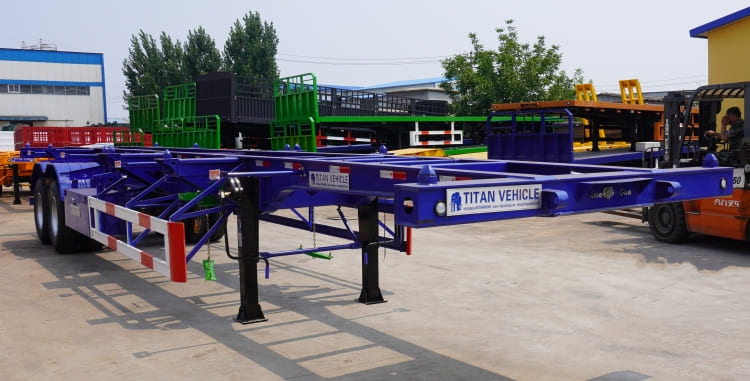

2 Axle 40 Ft Container Skeletal Semi Trailer for Sale in Senegal

2 Axle 40 Ft Container Skeletal Semi Trailer for Sale in Senegal

2 Axle 40 Ft Container Skeletal Semi Trailer for Sale in Senegal

2 Axle 40 Ft Container Skeletal Semi Trailer for Sale in Senegal

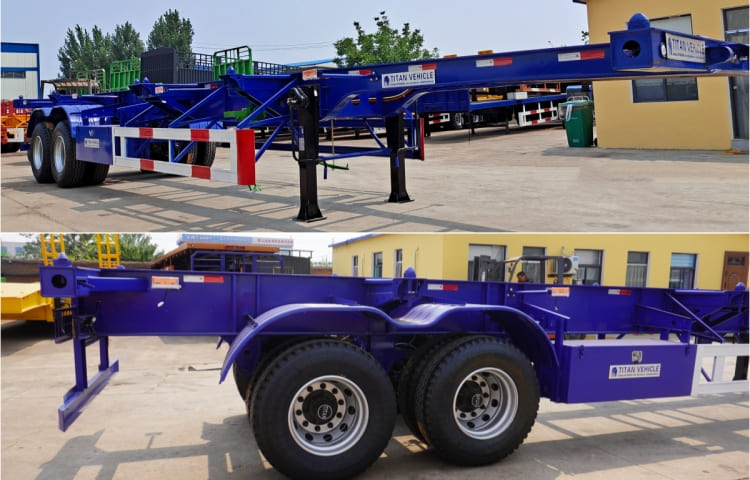

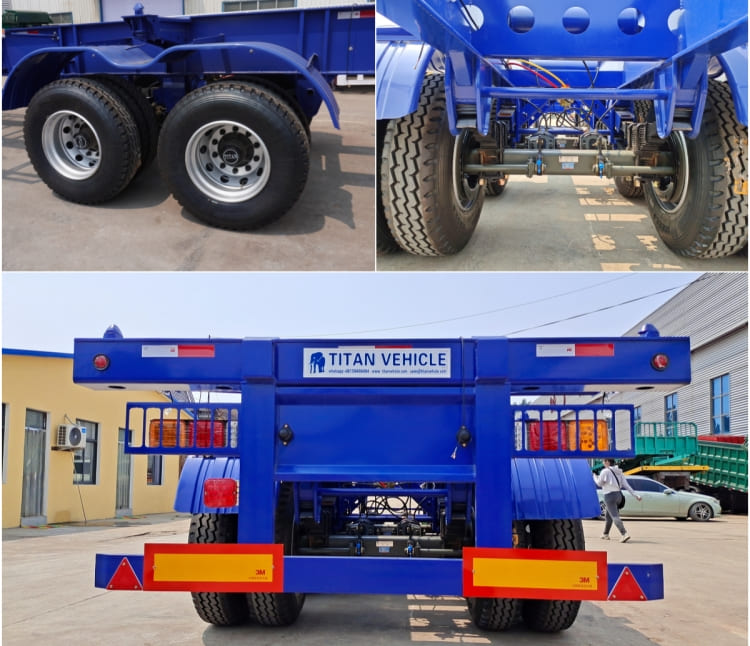

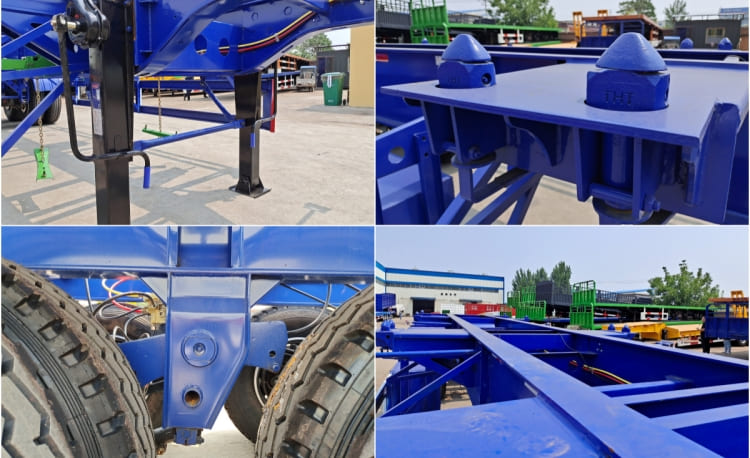

2 Axle Skeletal Trailer Details :

2 Axle 40 Ft Container Skeletal Semi Trailer for Sale in Senegal

2 Axle 40 Ft Container Skeletal Semi Trailer for Sale in Senegal

2 Axle 40 Ft Container Skeletal Semi Trailer for Sale in Senegal

2 Axle 40 Ft Container Skeletal Semi Trailer for Sale in Senegal



Specification of Container Skeletal Trailer :

Model: 2 axle 40 ft skeletal trailer

Transport: 20ft/40ft container

Loading capacity: 60-80 Tons

Overall dimension: 11000mm * 2260mm *1470mm

Walking system:

Axles: 3 axles , 13t/16t, FUWA/ BPW/TITAN

Suspension: Heavy duty mechanical suspension

Spring Leaf: 90(Width)mm*13(Thickness)mm*10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Accessories :

Twist Locks: 4,8,12 sets (lifting or screw type)

Langing gear: JOST/FUWA Brand

Traction Pin : Optional

ABS: Optional

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

LED:LED lights

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

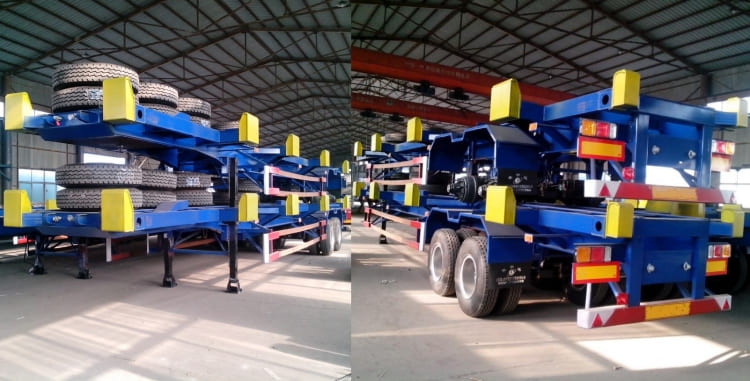

Skeletal Semi Trailer Packaging Scheme :

We have a professional team to pack the 2 axle skeletal container semi trailer to save the transportation cost for our customers. Up to 3 20 foot container skeletal semi trailer can be packed together. In this way, we can minimize the volume of the trailer and thus save on ocean freight.

2 Axle 40 Ft Container Skeletal Semi Trailer for Sale in Senegal

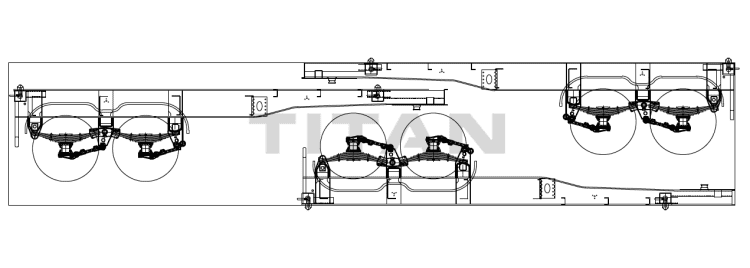

3 20ft Container Skeletal Semi Trailer Packaging Scheme

Or you can choose bulk transportation, TITAN will wrap the skeletal container trailer for sale with a rain cloth to prevent the skeleton trailer from being corroded by sea water and prevent the surface of the skeleton semi container trailer from rusting.

2 Axle 40 Ft Container Skeletal Semi Trailer for Sale in Senegal

2 Axle 40 Ft Container Skeletal Semi Trailer for Sale in Senegal



Through these videos, you can learn about different types of container chassis trailers, as well as the process, testing, packaging and customer feedback, etc.

40ft shipping container trailer

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
