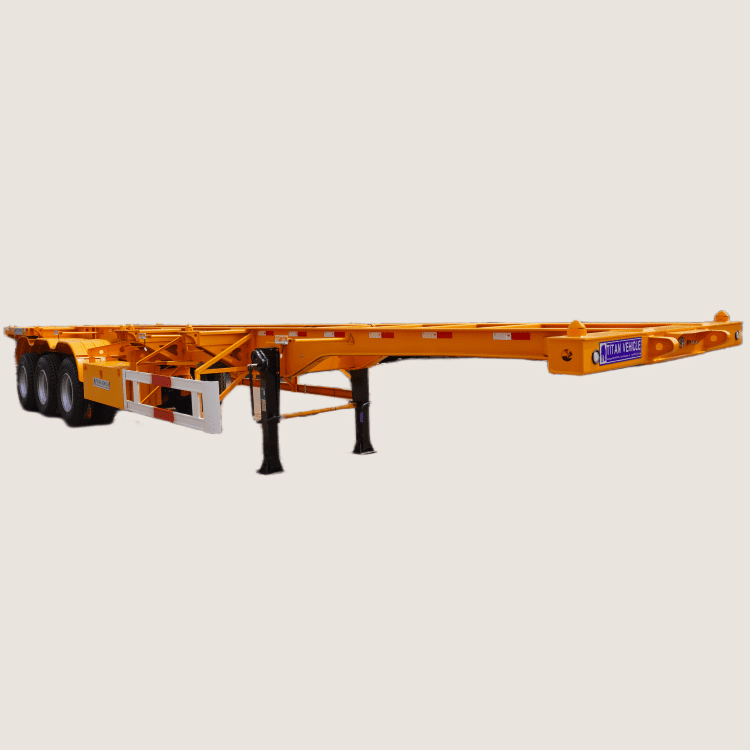

Tri Axle 40feet Skeletal Container Semi Trailer

Skeletal Container Semi Trailer Description :

TITAN skeletal container semi trailer are widely used in various container transportation, including 20ft/40ft containers, supporting ships, ports, waterways, highways, transfer stations, bridges, tunnels and multimodal transportation.

TITAN skeletal container semi trailer can also be customized in different sizes to meet customer needs. The tri axle skeletal trailer for sale is one of the most popular models in TITAN.

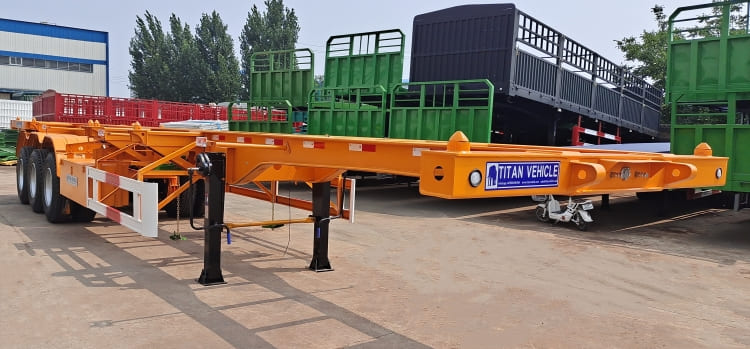

Tri Axle 40feet Skeletal Container Semi Trailer for Sale in Ghana

Tri Axle 40feet Skeletal Container Semi Trailer for Sale in Ghana

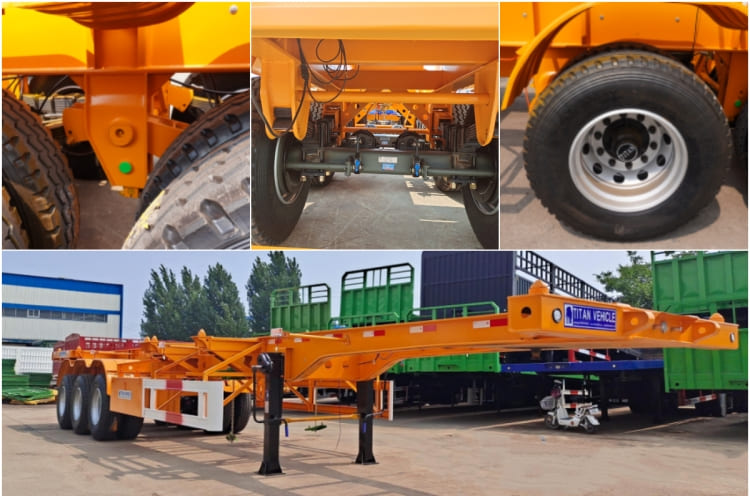

Details about Tri Axle Skeletal Trailer :

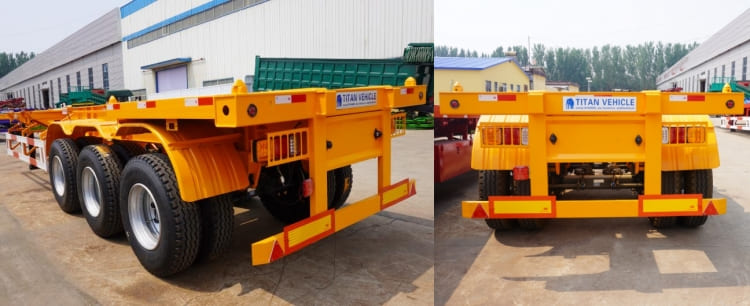

Tri Axle 40feet Skeletal Container Semi Trailer for Sale in Ghana

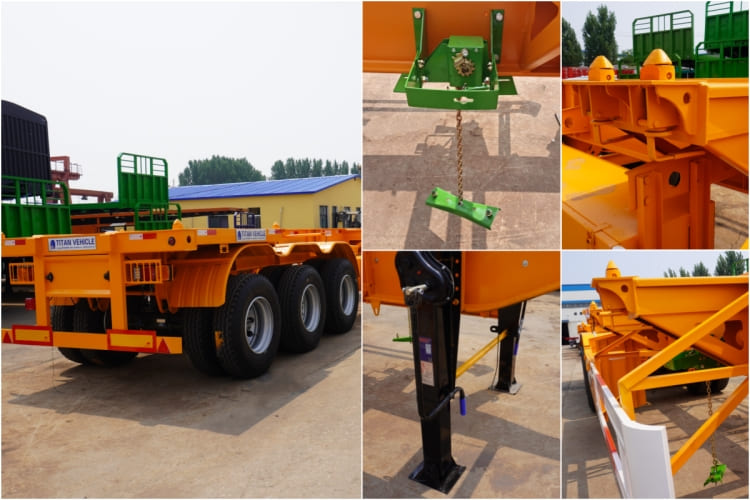

Tri Axle 40feet Skeletal Container Semi Trailer for Sale in Ghana

Specification of 40feet Skeletal Semi Trailer :

Model: tri axle 40feet skeletal semi trailer,

Transport: 20ft/40ft container

Loading capacity: 60-80 Tons

Overall dimension: 11000mm * 2260mm *1470mm

Walking system：

Axles: 3 axles , 13t/16t, FUWA/ BPW/TITAN

Suspension: Heavy duty mechanical suspension

Spring Leaf: 90(Width)mm*13(Thickness)mm*10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Accessories :

Twist Locks: 4,8,12 sets (lifting or screw type)

Langing gear: JOST/FUWA Brand

Traction Pin : Optional

ABS: Optional

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

LED：LED lights

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

Advantages of Skeletal Trailer :

1. The main beam of the TITAN 40feet skeletal semi trailer is made of Q345 high-strength steel, the middle plate is 500mm high and 8mm thick; the upper plate is 14mm thick and the lower plate is 16mm thick, with stronger bearing capacity and longer service life.

2. TITAN also uses advanced submerged arc welding technology to produce tri axle skeletal container trailer for sale, the main beam is formed at one time, and there is no welding interface between the main beam middle plate, bottom plate and upper plate.

3. The whole skeletal container semi trailer for sale is painted with polyurethane paint, which has good color retention, excellent adhesion and excellent adhesion, especially strong adhesion to metal surfaces.

4. We have a professional team to pack semi-trailers to save transportation costs for our customers. If you buy two skeletal trailer together, we can put them in a container that protects the trailers inside from rain and sea water.

Through these videos, you can learn about different types of container chassis trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
