3 Axle Sidewall Semi Detachable Trailer

Sidewall Trailer Description :

Wallside semi trailer is a semi-trailer whose cargo part is a fence structure. Wide range of uses, mainly suitable for medium and long-distance transportation of medium-heavy and bulk goods, with strong applicability, it has become the first choice for medium and long-distance freight vehicles.

Sidewall semi trailer for sale is mainly used to transport bulky goods that are not easy to disassemble. Sidewall trailer is more suitable for pulling fresh goods, such as vegetables, fruits and so on. The van is more suitable for pulling bulk cargo and moisture-proof more valuable cargo.

3 Axle Sidewall Semi Detachable Trailer for Sale in Namibia

3 Axle Sidewall Semi Detachable Trailer for Sale in Namibia

3 Axle Sidewall Semi Detachable Trailer for Sale in Namibia

Sidewall Semi Trailer Specification :

Model: 3 axle sidewall semi trailer

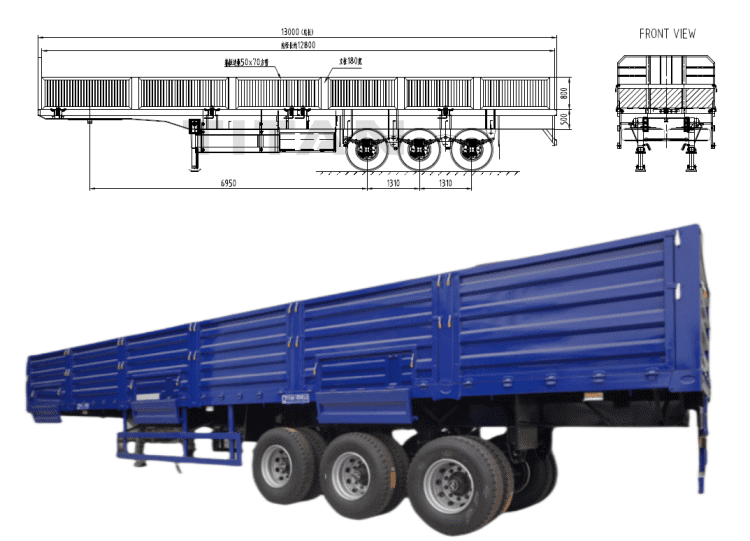

Dimension(mm): 13000mmx2650mmx3050mm

Trailer Sides: 600mm

Loading capacity(ton): 60-80T

Frame :

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Walking system :

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Tare Weight: About 7.6T

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Accessories ：

Landing Gear: JOST brand D200T or TITAN brand 28tons(double-speed)

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

3 Axle Sidewall Semi Detachable Trailer for Sale in Namibia

Sidewall Detachable Trailer Advantages :

1. The welding gap of this 3 axle sidewall semi trailer is finely processed, the manufacturing process is mature, and the welding scars and paint surfaces at the joints are in place and strong, which prolongs the service life of the 3 axle sidewall semi trailer.

2. The sidewall semi trailer for sale has also been lightweighted. The whole vehicle adopts a new type of high-strength steel, which is light in weight and high in strength, which reduces the weight of the whole vehicle without reducing the loading capacity.

3. BPW or FUWA axles can be selected for the TITAN sidewall semi trailer for sale.  The most important components of the trailer are internationally renowned brands. The assembly process of the whole vehicle will make the whole 3 axle sidewall semi trailer more consistent.

4. The wallside semi trailer suspension adopts a reinforced rigid suspension, which is made of a series-type leaf spring and a suspension support; the structure is reasonable, and it has strong rigidity and strength, which is used to support the load and reduce the impact.

Through this video, you can learn about different types of sidewall semi trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
