New 4 Axle 40 Ft Flatbed Trailer

40 Ft Trailer Description :

The 40 ft flatbed trailer for sale is a semi-trailer specially used for transporting containers. The body of the flatbed trailer is equipped with container locks. In addition to transporting containers, it can also transport some other bulk cargoes. TITAN flatbed trailer can be used repeatedly for a long time and has sufficient strength.

New flatbed trailers are widely used in transportation and play a huge role in the modern logistics industry. Mainly used in logistics systems supporting ships, ports, routes, highways, transfer stations, bridges, tunnels, and multimodal transport.

TITAN can provides the most reasonable 40 ft trailer price,  and we have sold many 40 ft flatbed trailer for sale in Africa and other country and region.

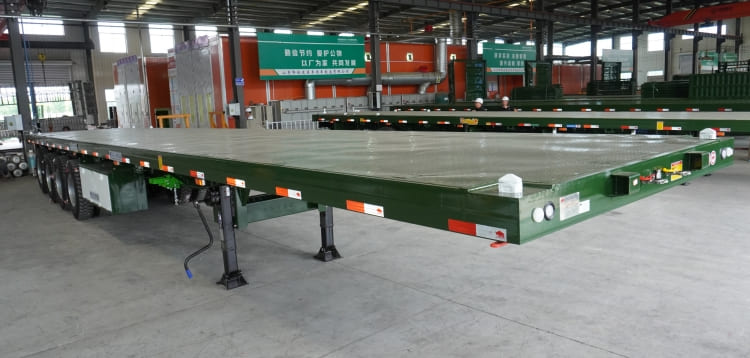

New 4 Axle 40 Ft Flatbed Trailer for Sale Price in Zimbabwe

New 4 Axle 40 Ft Flatbed Trailer for Sale Price in Zimbabwe

Details about 40 Ft Flatbed Trailer :

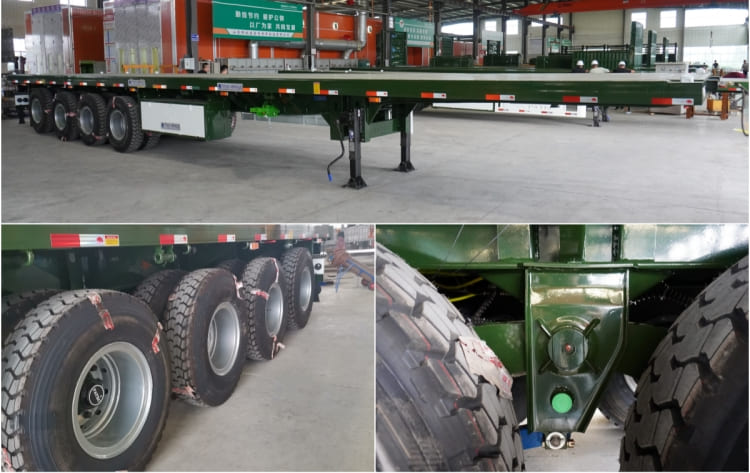

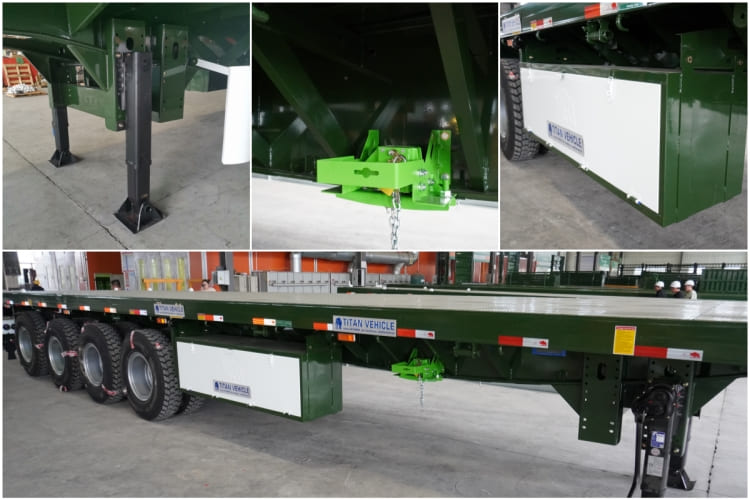

New 4 Axle 40 Ft Flatbed Trailer for Sale Details

New 4 Axle 40 Ft Flatbed Trailer for Sale Details

4 Axle Flatbed Specification :

Model: 4 Axle 40 Ft Flatbed Trailer for Sale

Transport: 20ft, 40ft container or bulk cargo

Loading capacity: 60-80 Tons

Overall dimension: 12500mm * 2500mm *1540mm

Main Beam: height: 500mm, upper plate:14mm, middle plate:8mm, bottom plate:16mm, material: Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Walking system：

Axles: 4 axles , 13t/16t, FUWA/ BPW/TITAN

Suspension: Heavy duty mechanical suspension/airbag suspension

Spring Leaf: 90(Width)mm*13(Thickness)mm*10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Tire: 16 units, 12.00R22.5 or 315/80R22.5

Accessories :

Twist Locks: 4,8,12 sets (lifting or screw type)

ABS: Optional

Langing gear: JOST/FUWA Brand

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

LED：LED lights

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

Flatbed Trailer Advantages :

1. Higher quality container locks ensure the stability and security of containers and cargo. When we produce container locks, the container locks will not damage the bottom plate. But other container locks from other suppliers may damage the flatbed trailer platform. At the same time, there are twist locks around the 40 ft flatbed trailer body.

2. TITAN adopts high-density diagonal braces to support the flatbed trailer beam, small spacing and a large number of inclined braces increase the stability of the flatbed semi-trailer structure. Each beam has its own support, and the distance between each two is only 50 cm.

3. TITAN new flatbed trailers accessories are from world-renowned brands. Such as fuwa/bpw axles, or fuwa/jost landing gear, etc. Especially for flatbed trailer with container locks, TITAN's container locks will not damage the body, and can be freely retracted, which greatly ensures the integrity of the body.

4. The whole 40 ft flatbed trailer for sale is sprayed with polyurethane paint, which can effectively protect the body from rusting and prolong the service life of the whole vehicle. The whole flatbed trailer is more beautiful, and the color can be customized according to the customer's preference.

Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click "TITAN Flatbed Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
