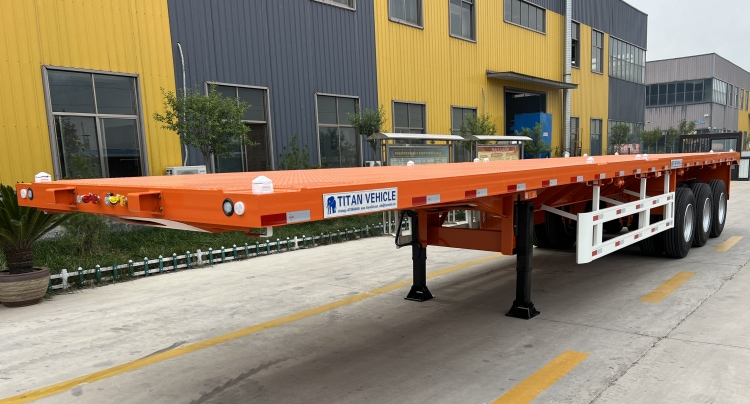

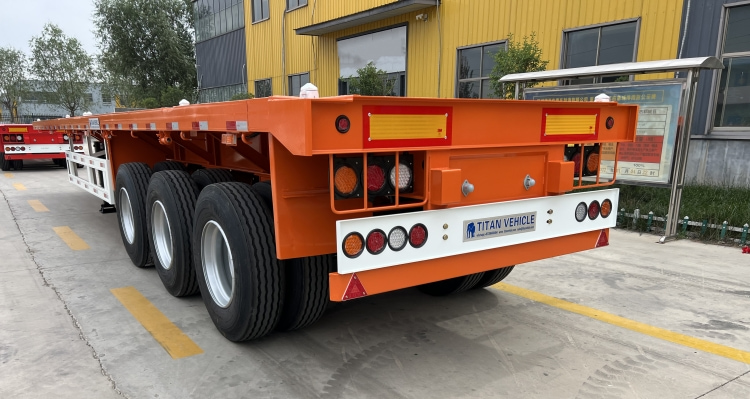

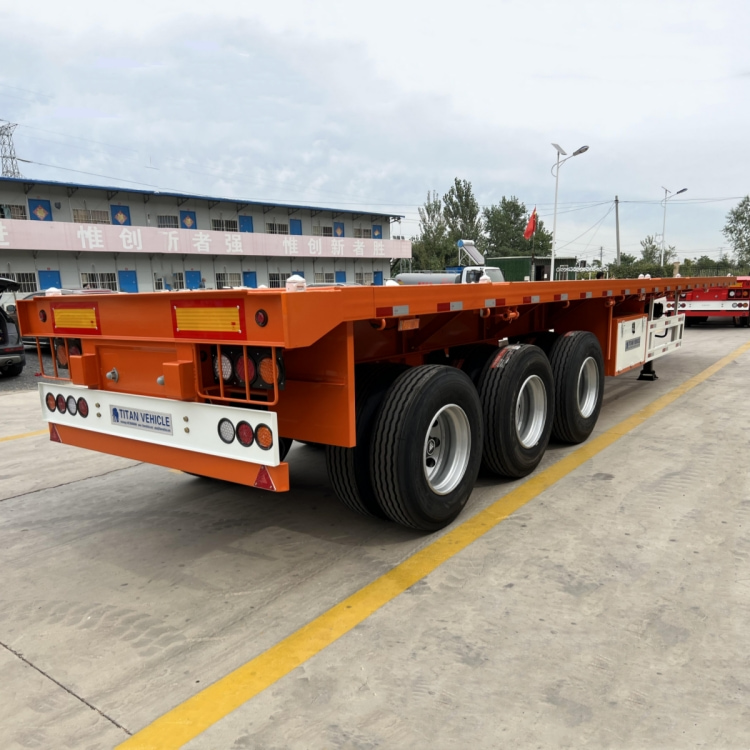

Tri Axle Flatbed Trailer for Sale

Name: Tri Axle Flatbed Trailer for Sale
Brand: TITAN
SKU: Tri Axle Flatbed Trailer for Sale
Price: 10000 USD
Availability: InStock
Rating: 5.00 (1 reviews)

10000 USD

Tri axle flatbed trailer for sale is the most popular models in TITAN. and TITAN also can offer the 20ft/45ft/ 48ft/53ft flatbed trailer for sale, 2/3/4 axle, the loading capacity of the trailer from 60-100 tons.

SKU: Tri Axle Flatbed Trailer for Sale

MPN: TITAN9800037

Brand: TITAN

Tri Axle Flatbed Trailer for Sale Description :

This tri axle trailer for sale in Nigeria is mainly used in the logistics system of ships, ports, routes, highways, transfer stations, bridges, tunnels, and multimodal transportation, and is specially used for the transportation of various containers. It can be used repeatedly for a long time and has sufficient strength.

Tri Axle Trailer for Sale in Nigeria | Tri Axle Flatbed Trailer for Sale | 3 Axle Trailer

3 Axle Trailer Specification :

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers

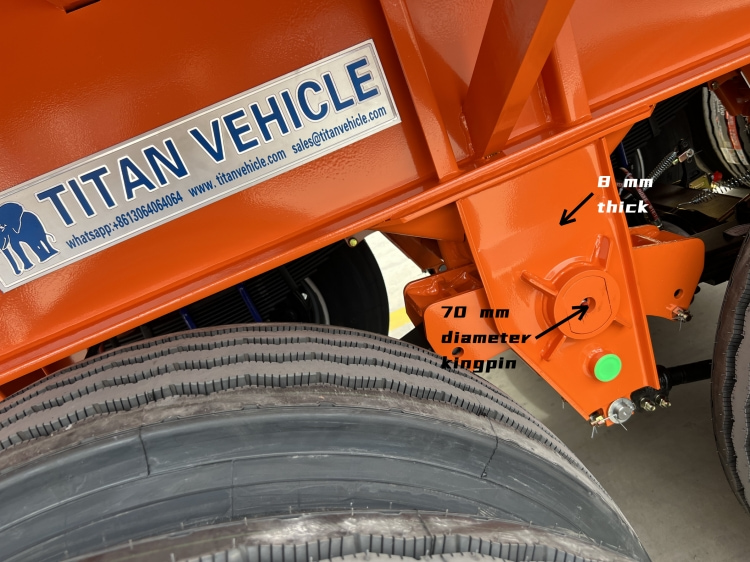

King Pin: JOST brand 2.0 or 3.5 inch

Landing Gear: JOST brand D200T or Chinese brand 28tons

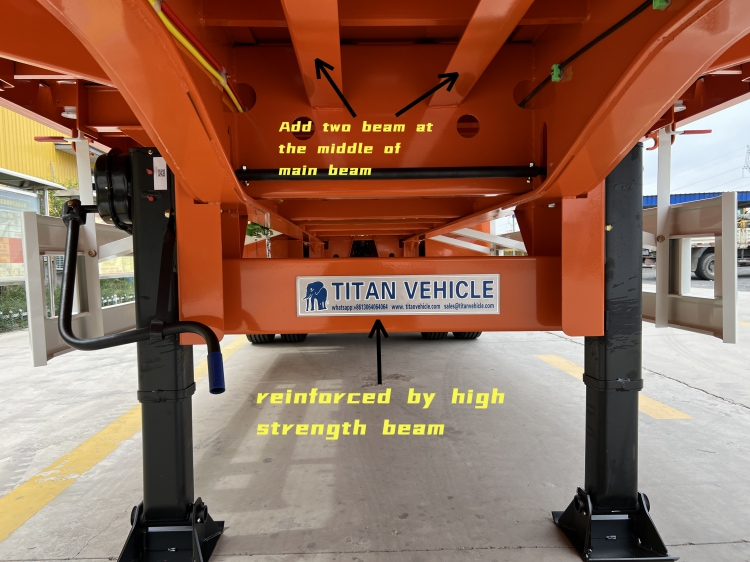

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO

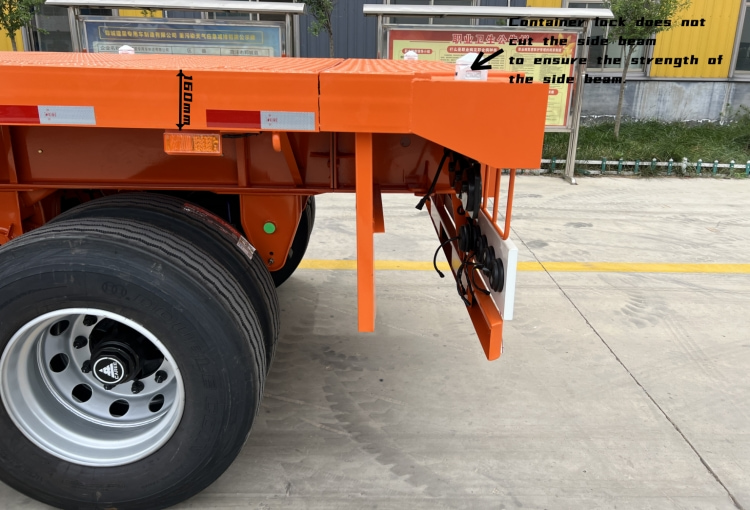

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve

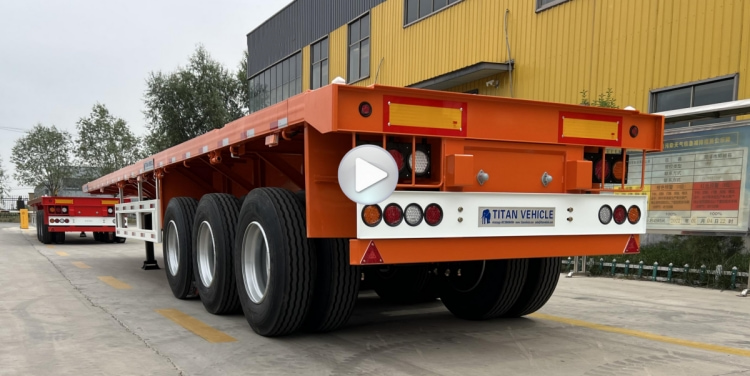

Video of Tri Axle Flatbed Trailer for Sale :

Feedback

Review

Cristian from Nigeria - 2022-11-21T10:12:01+0800

For the 40ft flatbed tractor trailer it is easy to use and does exactly what I need it to do. This flatbed trailer always makes my designs exactly how I need to be.
