2 Axle 20 Ft Container Chassis Trailer

Container Chassis Description :

The frame of the container chassis trailer for sale is all shot peened, and the whole container chassis for sale near me frame is assembled and welded on a special positioning platform, which has a reasonable structure, high strength and beautiful appearance.

A container tightening device is set on the 2 axle container chassis trailer frame, which can load two standard containers of 40 feet and 20 feet. A 20 ft container chassis trailer can load a 20-inch container.

2 Axle 20 Ft Container Chassis Trailer for Sale Near Me in Malawi

2 Axle 20 Ft Container Chassis Trailer for Sale Near Me in Malawi

2 Axle 20 Ft Container Chassis Trailer for Sale Near Me in Malawi

Container Trailer Specification :

Model: 2 axle 20 ft container trailer

Transport: 20ft container

Loading capacity: 40-60 Tons

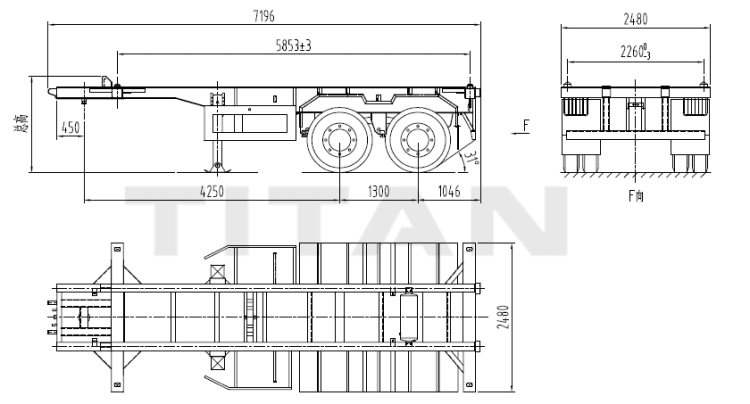

Overall dimension: 7196mm * 2480mm *1470mm

Walking system：

Axles: 2 axles , 13t/16t, FUWA/ BPW/TITAN

Suspension: Heavy duty mechanical suspension/Airbag Suspension

Spring Leaf: 90(Width)mm*13(Thickness)mm*10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Tire: 8 units, 12.00R22.5 or 315/80R22.5

Accessories :

Twist Locks: 4,8,12 sets (lifting or screw type)

Langing gear: JOST/FUWA Brand

Traction Pin : Optional

ABS: Optional

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

LED：LED lights

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

2 Axle 20 Ft Container Chassis Trailer for Sale Near Me in Malawi

Container Trailer for Sale Advantages :

1. The main beam and longitudinal beam of the container chassis trailer are welded by high-strength plates, which have the characteristics of high strength, high rigidity, good toughness, strong bearing capacity, no deformation, and long service life.

2. TITAN can provide various types and specifications of container chassis products to meet your different transportation needs. TITAN can be customized container trailer for sale according to your different needs for shipping containers.

3. TITAN paints the entire body with polyurethane paint. So the appearance of TITAN container chassis trailer is simple and elegant, and the color can be customized according to customer needs. The overall body is full of coordination and beauty.

4. TITAN container chassis trailer accessories are selected from world-renowned brands. For example, the landing gear are available under the brand JOST or TITAN, which are world-renowned brand accessories. Better load capacity and longer service life.

Through these videos, you can learn about different types of container chassis trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
