3 Axle 40ft Gooseneck Container Chassis Trailer

Container Trailer Chassis Description :

The appearance of TITAN container trailer is simple and elegant, and the color can be customized according to customer needs. Visually, you can feel the overall coordination and beauty, and the TITAN container chassis trailer for sale can also reduce fuel consumption, save energy and protect the environment.

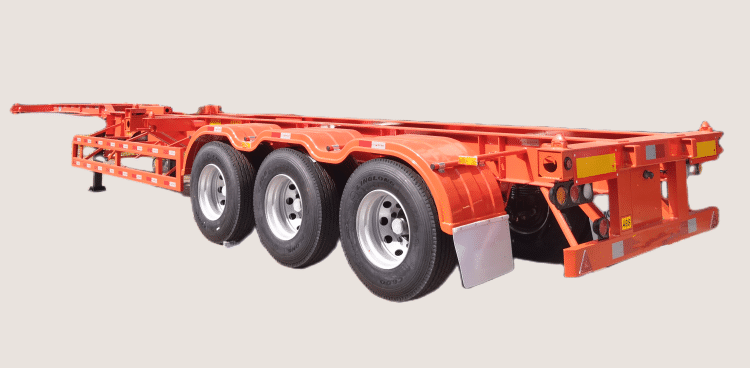

The container chassis trailer is also divided into flat type and gooseneck type. The picture on the picture is a gooseneck container trailer.  As a professional container chassis trailer manufacturer, TITAN can provide you with the most reasonable container trailer price.

3 Axle 40ft Container Chassis Trailer Manufacturer for Sale Prices in Mozambique

3 Axle 40ft Container Chassis Trailer Manufacturer for Sale Prices in Mozambique

3 Axle 40ft Container Chassis Trailer Manufacturer for Sale Prices in Mozambique

Container Trailer Specification :

Model: 3 axle 40ft container chassis trailer

Transport: 20ft/40ft container

Loading capacity: 40-60 Tons

Overall dimension: 11000mm * 2260mm *1470mm

Walking system：

Axles: 3 axles , 13t/16t, FUWA/ BPW/TITAN

Suspension: Heavy duty mechanical suspension/Airbag Suspension

Spring Leaf: 90(Width)mm*13(Thickness)mm*10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Accessories :

Twist Locks: 4,8,12 sets (lifting or screw type)

Langing gear: JOST/FUWA Brand

Traction Pin : Optional

ABS: Optional

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

LED：LED lights

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

One 20ft Container Transportation Plan :

Container trailer chassis for sale are often used for the transportation of various containers. The 40ft container trailer for sale is usually used to transport two 20 inch containers or a 40 inch container, of course, it can also transport a 20 inch container.

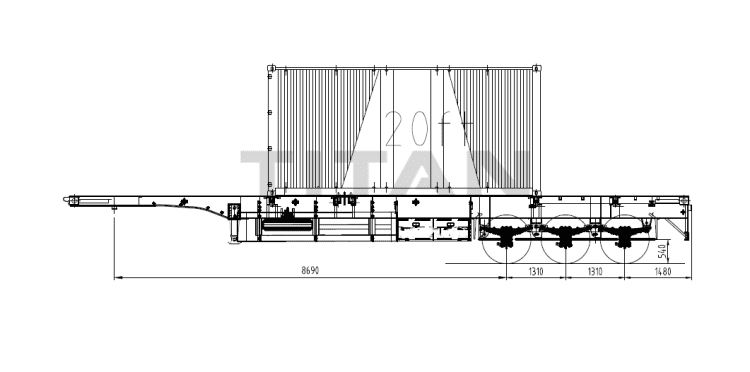

The picture below is a demonstration of a 20-inch container being transported on a  40ft container chassis trailer for sale.

3 Axle 40ft Container Chassis Trailer Manufacturer for Sale Prices in Mozambique

Through these videos, you can learn about different types of container chassis trailers, as well as the process, testing, packaging and customer feedback, etc.
