Tri Axle 20 Ft Shipping Container Chassis Trailer

Container Trailers Description :

Shipping container chassis trailer for sale refers to a semi trailer whose loading part is a chassis frame without a cargo platform. After the container is hoisted to the body and fixed by a twist-lock device, it also becomes a part of the container trailers.

Shipping container trailer for sale are mainly suitable for ships, ports, routes, roads and multimodal logistics transportation systems. According to the difference in appearance form, it can be classified into two types: straight frame type and gooseneck type.

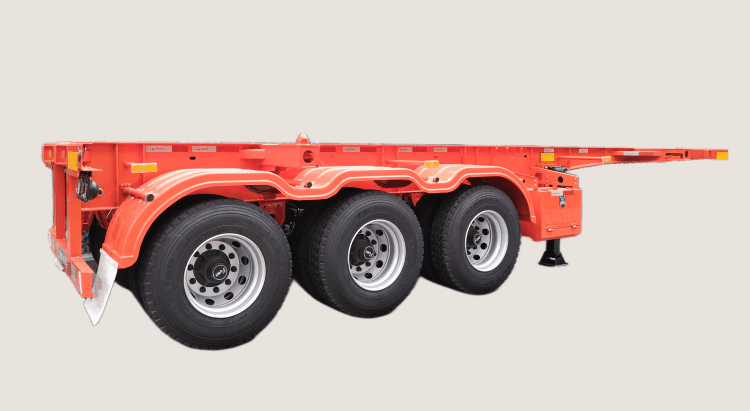

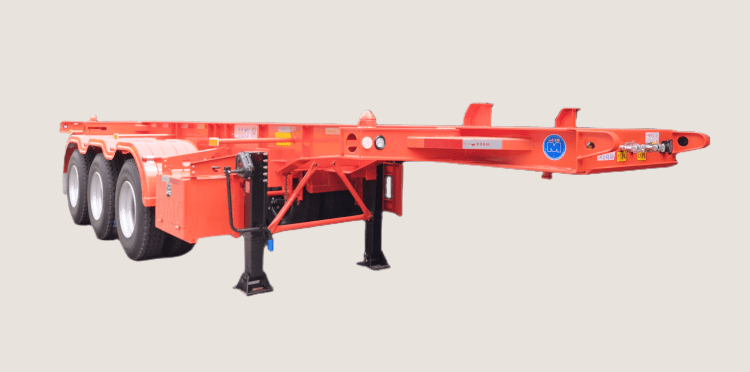

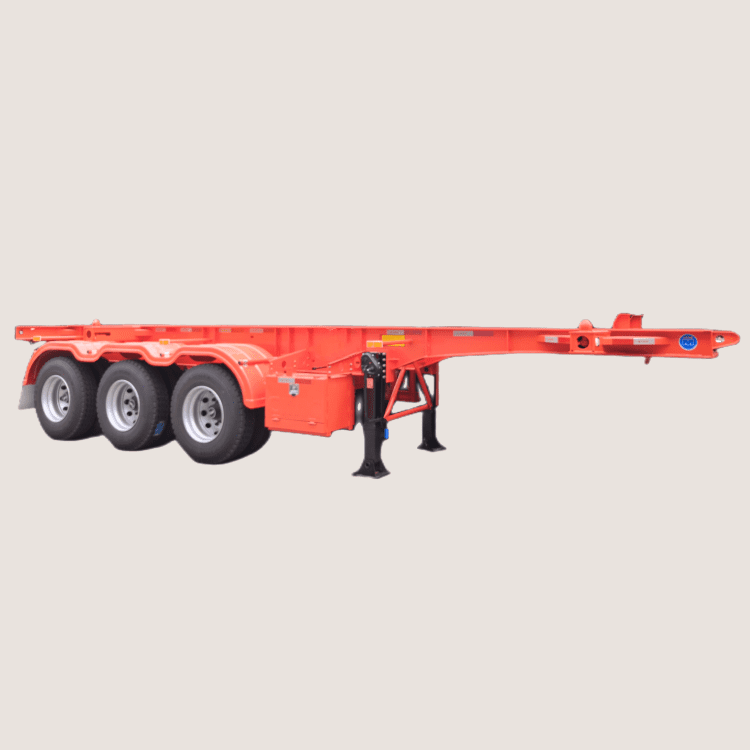

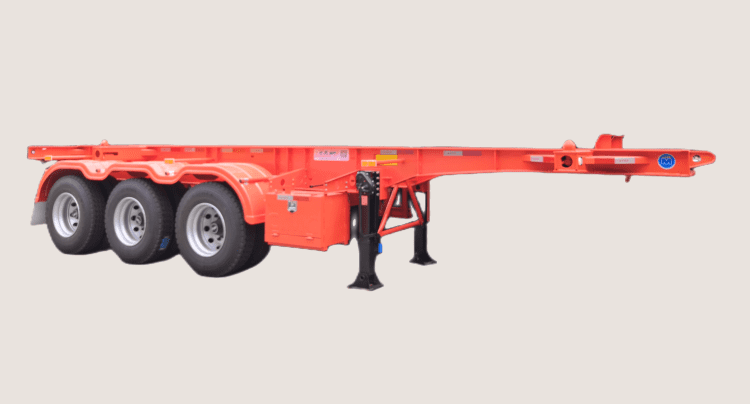

Tri Axle 20 Ft Shipping Container Chassis Trailers for Sale in Tanzania

Tri Axle 20 Ft Shipping Container Chassis Trailers for Sale in Tanzania

Tri Axle 20 Ft Shipping Container Chassis Trailers for Sale in Tanzania

Container Chassis Specification :

Model: Tri axle 20 ft shipping container trailer for sale

Transport: 20ft container

Loading capacity: 40-60 Tons

Overall dimension: 5000mm * 2260mm *1470mm

Walking system：

Axles: 3 axles , 13t/16t, FUWA/ BPW/TITAN

Suspension: Heavy duty mechanical suspension/Airbag Suspension

Spring Leaf: 90(Width)mm*13(Thickness)mm*10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Accessories :

Twist Locks: 4,8,12 sets (lifting or screw type)

Langing gear: JOST/FUWA Brand

Traction Pin : Optional

ABS: Optional

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

LED：LED lights

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

Shipping container trailer Advantages :

1. TITAN container chassis for sale uses automatic submerged arc welding to weld the main beam, and there is no welding interface between the middle, bottom and upper plates of the main beam. This makes the container trailers more robust and durable.

2. All the accessories of this container chassis are from well-known international brands, which greatly improves the transportation and loading capacity of the entire 20 ft shipping container trailer for sale, improves the service life, and allows customers to buy the best quality at the lowest price.

3. The paint is made of well-known brand polyurethane paint and pre-sprayed with anti-rust primer to ensure that the paint system of the shipping container chassis trailers for sale has good anti-corrosion and anti-rust performance. The skeleton trailer is more beautiful, effectively protects the body from rusting, and prolongs the service life of the vehicle.

4. In order to save the customer's transportation cost, this tri axle container chassis can be loaded with one container every two sets without removing the tire axle, which realizes the containerized transportation of the entire container trailers, which is convenient for customers to load and unload the trailer while saving freight.
