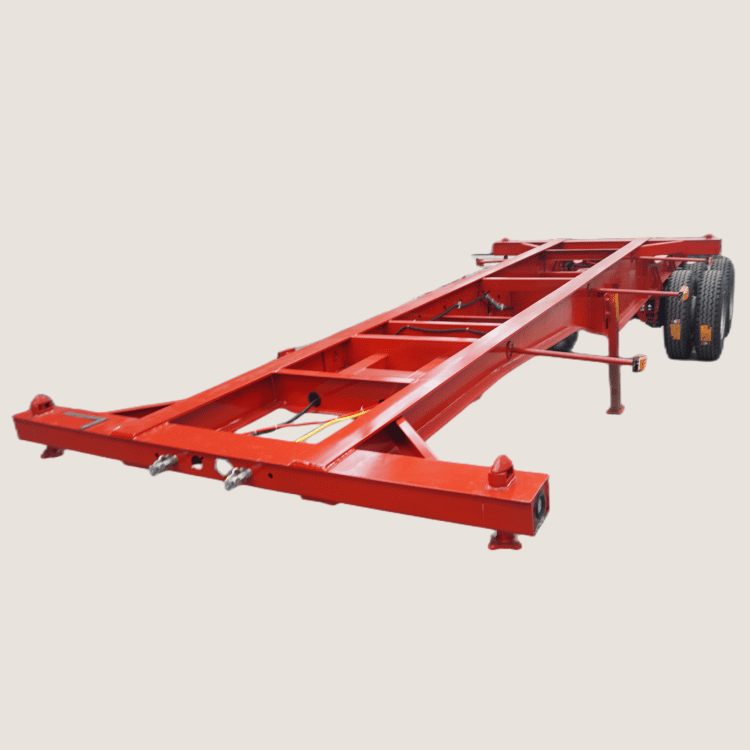

2 Axle 20ft Skeleton Semi Trailer

Skeleton Trailer Description :

The skeleton trailer for sale is specially designed for various container transportation, and customers can choose how many container locks to replace according to their needs. Skeleton semi trailer have quick loading and unloading capabilities and can be directly transferred from one cart to another.

All parts of the TITAN skeleton trailer for sale are the first choice of suppliers with 20 years of experience, which can be used repeatedly for a long time and have quality assurance. Skeleton semi trailer are mainly used in ships, ports, routes, highways, transfer stations, bridges, tunnels, and supporting multimodal logistics systems.

2 Axle 20ft Skeleton Semi Trailer for transport of 20' container for sale

2 Axle 20ft Skeleton Semi Trailer for transport of 20' container for sale

2 Axle 20ft Skeleton Semi Trailer for transport of 20' container for sale

20ft Skel Trailer for Sale Specification :

Model: 2 axle 20ft skeleton semi trailer

Transport: 20ft container

Loading capacity: 40-60 Tons

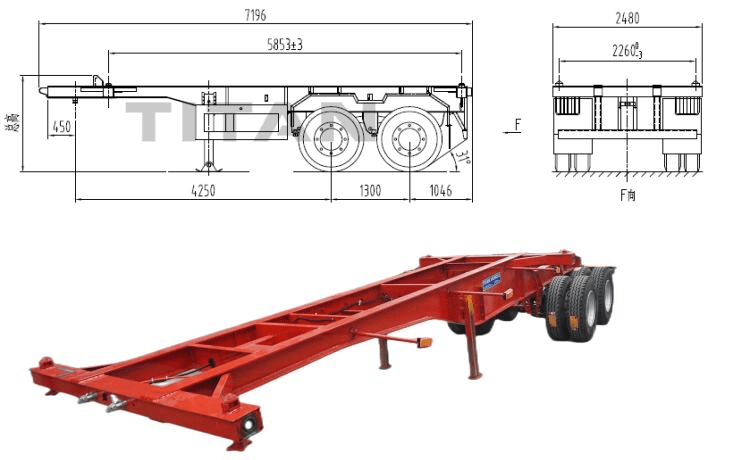

Overall dimension: 7196mm * 2480mm *1470mm

Walking system：

Axles: 2 axles , 13t/16t, FUWA/ BPW/TITAN

Suspension: Heavy duty mechanical suspension

Spring Leaf: 90(Width)mm*13(Thickness)mm*10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Tire: 8 units, 12.00R22.5 or 315/80R22.5

Accessories :

Twist Locks: 4,8,12 sets (lifting or screw type)

Langing gear: JOST/FUWA Brand

Traction Pin : Optional

ABS: Optional

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

LED：LED lights

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

2 Axle 20ft Skeleton Semi Trailer for transport of 20' container for sale

Skeleton Trailer for Sale Advantages :

1. TITAN skeleton trailer for sale has strong ability to adapt to complex road conditions, taking into account the characteristics of flexibility and stability, and has strong adaptability. There are various brands of traction pins, you can choose according to your choice.

2. The girder is the main body of the skeleton semi traielr. In the skeleton trailer for sale, the girder should not only play the role of load-bearing, but also play the role of shock absorption. The high-strength steel used in the girders of the 2 axle skeleton semi trailer is load-bearing, shock-resistant and has a long service life.

3. The quality and performance of the TITAN skeleton semi trailer are stable, and the vehicle accessories are all well-known brands in the industry. Adopting the process design of excellence, and controlling the quality inspection layer by layer, the performance of the product can be maximized.

4. In the rear and rear style design, according to the actual needs of customers, we can make the most solid and buffered anti-collision structure, which reduces the damage to the skeleton trailer for sale and avoids the damage caused by the inertial collision of the goods.

Through these videos, you can learn about different types of container chassis trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
