3 Axle 40ft Skeleton Semi Trailer

Skeleton Trailer Description :

The skeleton semi trailer is a semi-trailer specially used for transporting containers. Container is a kind of packaging container for cargo transportation. It occupies an important position in the modern logistics and transportation industry due to its incomparable advantages over other transportation containers.

40ft skeleton trailer for sale can transport one standard 40 foot container, two 20 foot containers or one 20 foot container. And the loading capacity of 3 axle skeleton semi trailer is generally about 40-60 tons. And we also provides 2/3/4 axle skeleton semi trailer for sale.

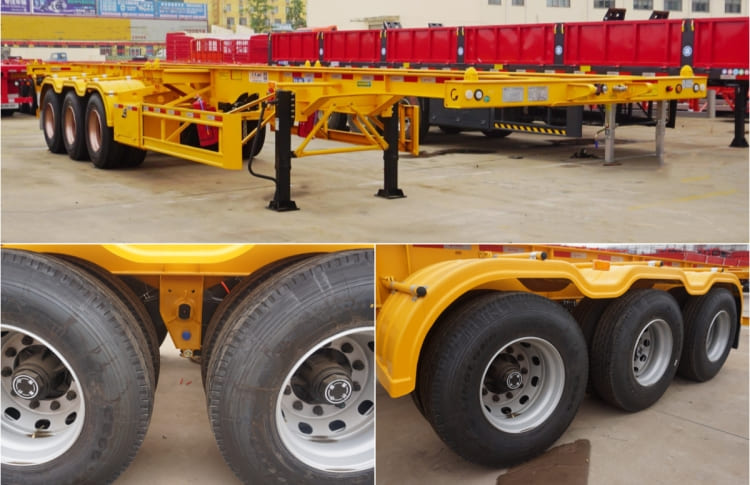

3 Axle 40ft Skeleton Semi Trailer for Sale in Mauritius

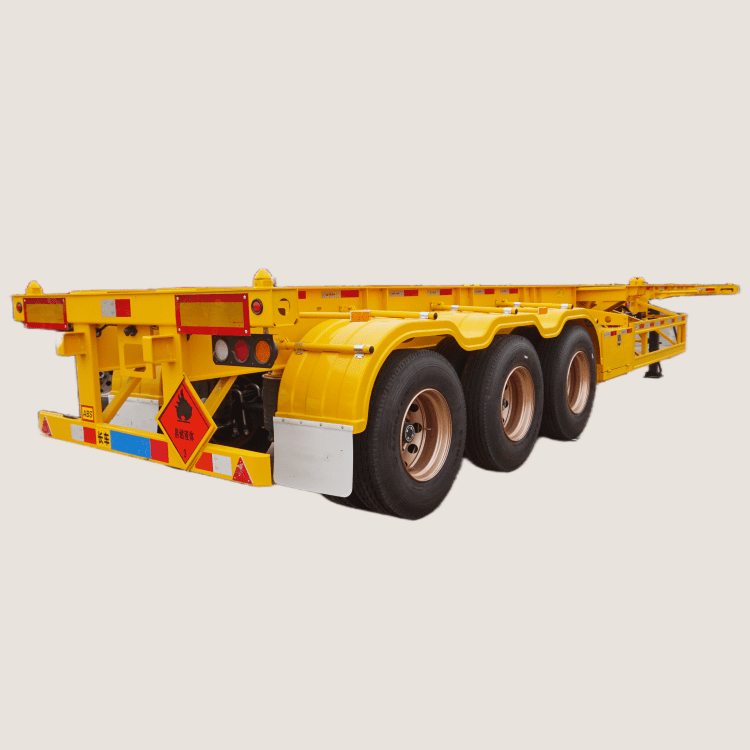

3 Axle 40ft Skeleton Semi Trailer for Sale in Mauritius

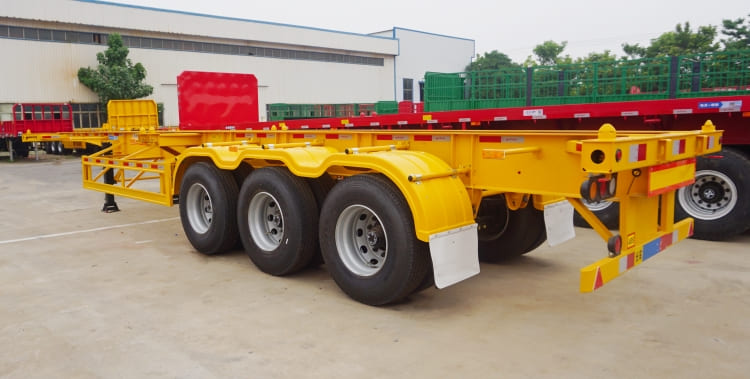

3 Axle 40ft Skeleton Semi Trailer for Sale in Mauritius

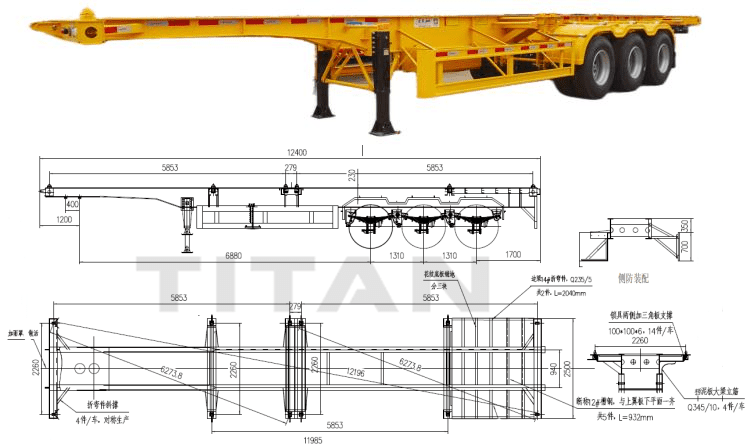

Skeleton Semi Trailer Specification :

Model: 3 axle 40 ft skeletal semi trailer

Transport: 20ft/40ft container

Loading capacity: 40-60 Tons

Overall dimension: 12400mm * 2500mm *1470mm

Walking system：

Axles: 3 axles , 13t/16t, FUWA/ BPW/TITAN

Suspension: Heavy duty mechanical suspension

Spring Leaf: 90(Width)mm*13(Thickness)mm*10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Accessories :

Twist Locks: 4,8,12 sets (lifting or screw type)

Langing gear: JOST/FUWA Brand

Traction Pin : Optional

ABS: Optional

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

LED：LED lights

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

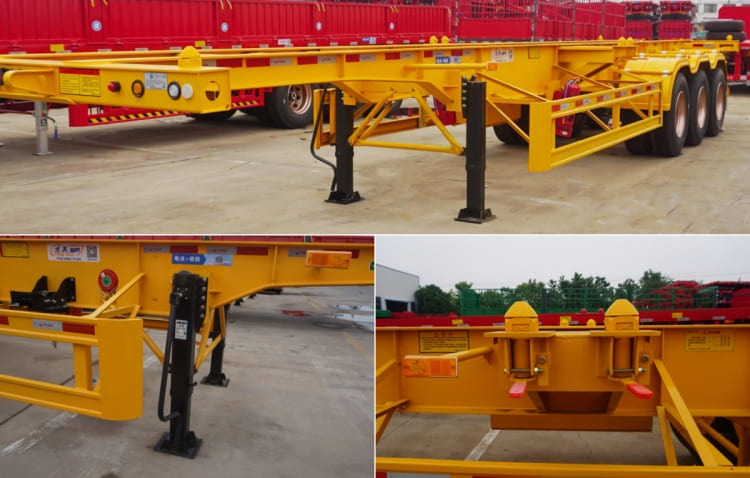

3 Axle 40ft Skeleton Semi Trailer for Sale in Mauritius

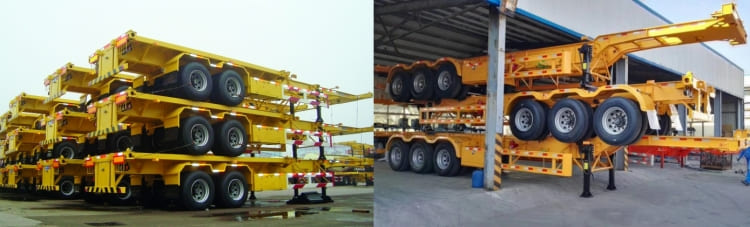

Skeleton Trailer for Sale Package :

There are two main delivery methods for TITAN skeleton semi trailer for sale: container delivery and bulk delivery. You can choose according to your needs. We have a professional packaging and delivery team.

Both shipping methods have their own advantages. Container shipments can be packed up to three in one container, saving ocean freight, and the skeleton semi trailer for sale can be protected from seawater erosion in the container.

For bulk delivery, we will wrap the skeleton semi trailer for sale with a rain cloth before delivery to avoid corrosion by seawater and rainwater.

3 Axle 40ft Skeleton Semi Trailer for Sale in Mauritius

Through these videos, you can learn about different types of container chassis trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
