3 Axles 20ft Gooseneck Skeleton Container Trailer

Skeleton Trailer Description :

TITAN skeleton container trailer adopts the technology of excellence, pursues high quality, unique ingenuity, and mature production line. Gooseneck skeleton container trailer is made of high-strength steel with stable quality and performance, and the vehicle accessories are all well-known brands in the industry.

Skeleton container truck trailer is widely used, mainly used for transporting containers. TITAN skeleton container truck trailer for sale can take into account more road conditions, taking into account the characteristics of flexibility and stability, and has strong adaptability.

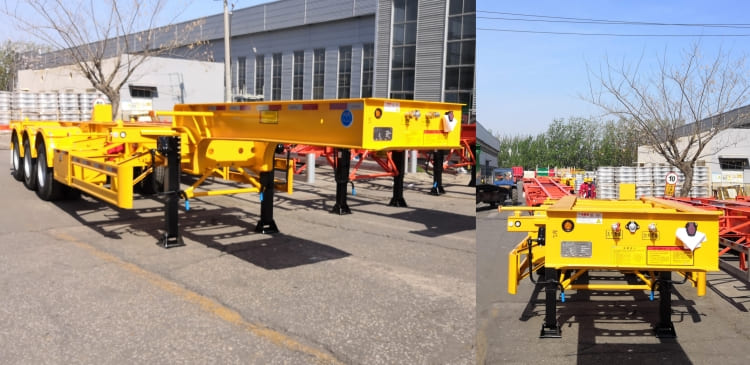

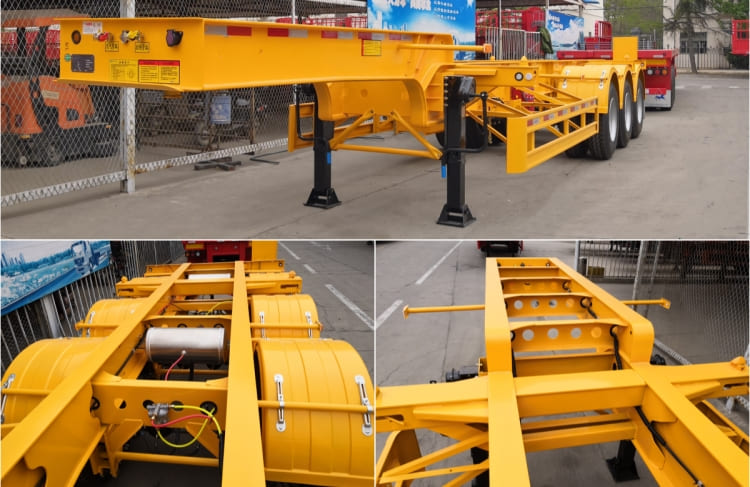

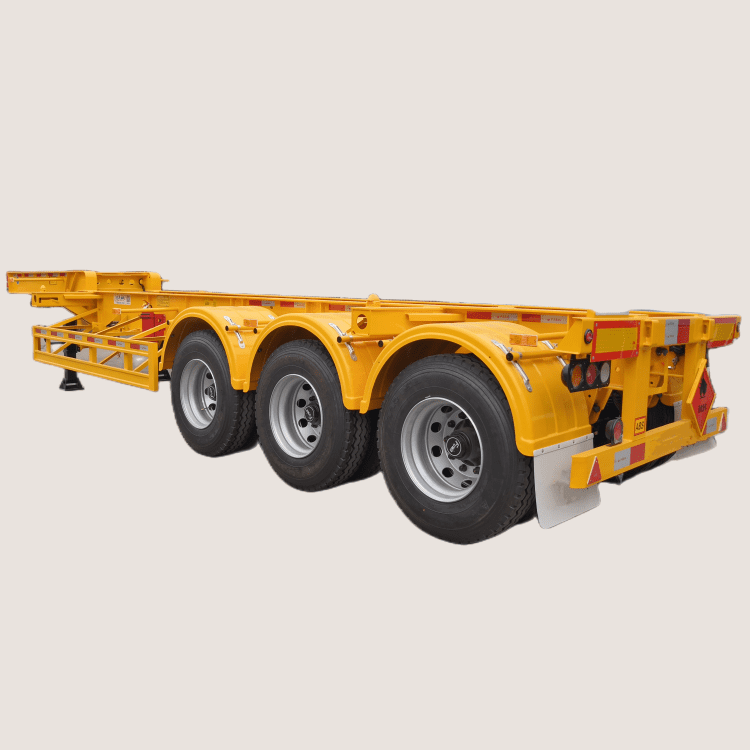

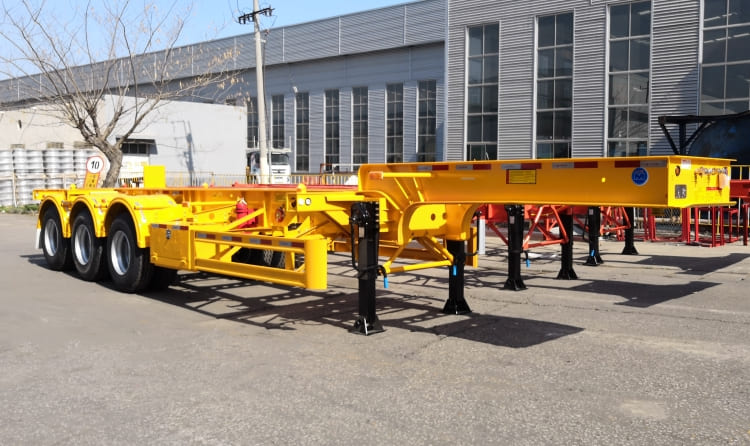

3 Axles 20ft Gooseneck Skeleton Container Truck Trailer for Sale

3 Axles 20ft Gooseneck Skeleton Container Truck Trailer for Sale

3 Axles 20ft Gooseneck Skeleton Container Truck Trailer for Sale

Skeleton Container Truck Trailer Specification :

Model: 3 axle 20ft skeletal truck trailer

Transport: 20ft/40ft container

Loading capacity: 40-60 Tons

Overall dimension: 7196mm * 2500mm *1470mm

Walking system：

Axles: 3 axles , 13t/16t, FUWA/ BPW/TITAN

Suspension: Heavy duty mechanical suspension

Spring Leaf: 90(Width)mm*13(Thickness)mm*10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Accessories :

Twist Locks: 4,8,12 sets (lifting or screw type)

Langing gear: JOST/FUWA Brand

Traction Pin : Optional

ABS: Optional

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

LED：LED lights

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

20ft Skeleton Truck Trailer Transportation Plan :

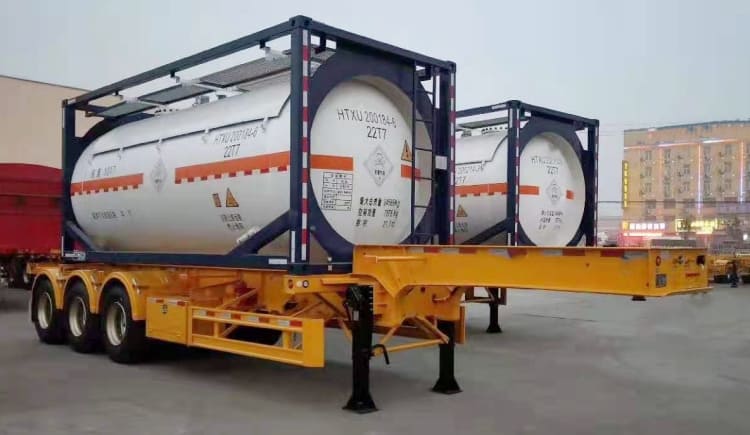

The picture shows a standard 20 inch oil tank container on this gooseneck skeleton container trailer. 40ft skeleton trailer can load two standard 20 inch container or one 40 foot container. You can choose skeleton container trailer of different sizes according to your needs.

Through these videos, you can learn about different types of container chassis trailers, as well as the process, testing, packaging and customer feedback, etc.
