2 Axles 48 Foot Flatbed Container Trailer

Description of Flatbed Container Trailer :

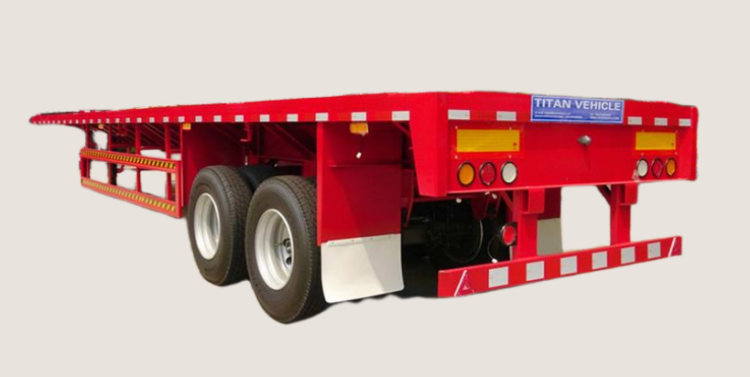

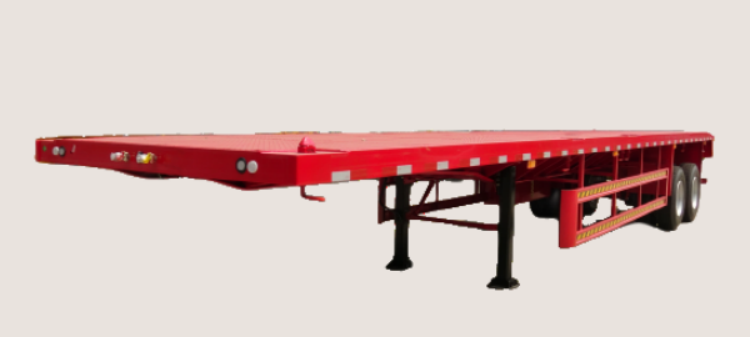

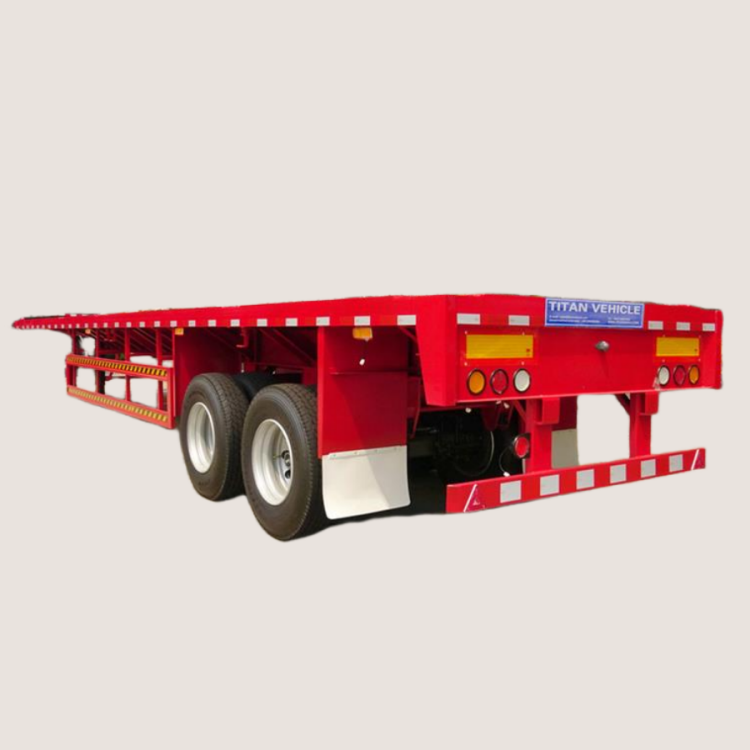

Flatbed trailer for sale are commonly used to transport various bulk cargo and containers, each flatbed container trailer for sale has its own load rating and size. The picture shows a 2 axles 48 foot flatbed container trailer.

Titan 48 flatbed trailer for sale are very popular in the African、Asian and South America market. Because the TITAN flatbed container trailer for sale has advantages in price and product quality.

2 Axles 48 Foot Flatbed Container Trailer for Sale in Tanzania

2 Axles 48 Foot Flatbed Container Trailer for Sale in Tanzania

FlatBed Container Trailer Specification :

Model: 2 axles 48ft flatbed container trailer

Transport: 20ft, 40ft container or bulk cargo

Loading capacity: 40-60 Tons

Overall dimension: 12360mm * 2260mm *1470mm

Main Beam: height: 500mm, upper plate:14mm, middle plate:8mm, bottom plate:16mm, material: Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Walking system：

Axles: 2 axles , 13t/16t, FUWA/ BPW/TITAN

Suspension: Bogie Suspension

Spring Leaf: 90(Width)mm*13(Thickness)mm*10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Tire: 8 units, 12.00R22.5 or 315/80R22.5

Accessories :

Twist Locks: 4,8,12 sets (lifting or screw type)

ABS: Optional

Langing gear: JOST/FUWA Brand

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

LED：LED lights

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

Flatbed Trailer for Sale Advantages :

1. TITAN uses an automatic submerged arc welding method to weld the main beam, therefore, the main beam is stronger and more durable. The load capacity is stronger, the service life of the 2 axles flatbed container trailer is prolonged, and the customer's cost is saved to a certain extent.

2. In order to ensure the service life of the flatbed container trailer, all the spare parts we use are world-renowned brands. For example, axles, suspensions, tires and landing gear are all well-known brands, and customers can choose different brands according to their needs.

3. The flatbed trailer for sale adopts durable mechanical widening spring suspension to ensure the load capacity and stability of the vehicle. The flatbed trailer for sale is equipped with high-quality container locks to ensure the stability and safety of the cargo.

4. Polyurethane coating makes the vehicle more beautiful, effectively protects the flatbed trailer body from rusting, and prolongs the service life of the 2 axles 48 foot flatbed container trailer.

Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click "TITAN Flatbed Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
