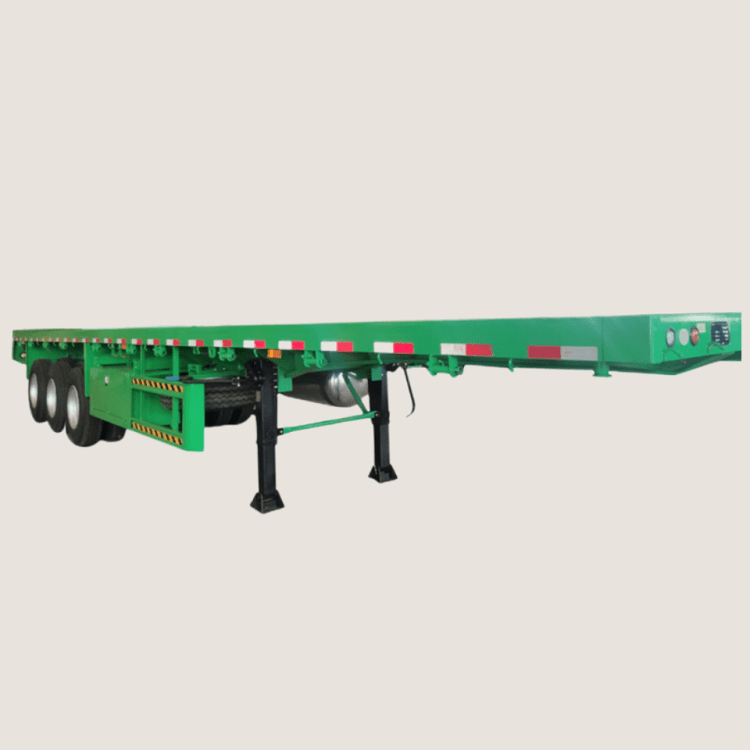

3 Axle 48 Foot Flatbed Semi Trailer

Flatbed Semi Trailer Description :

As a professional flatbed semi trailer manufacturers, TITAN can provide you with a wide range of flatbed semi trailer for sale. For example, 2/3/4 axles and 20/40/45/48/53 inch flatbed semi trailer have a load capacity ranging from 40-120 tons. TITAN can also customize the flatbed semi trailer for sale for you according to your transportation needs.

3 axle flatbed trailers for sale and 48 foot flatbed trailer are the most advantages products in TITAN. In addition to transporting containers of different sizes, the flatbed semi trailer for sale can also transport bulk cargoes such as steel and building materials, and has a wide range of uses.

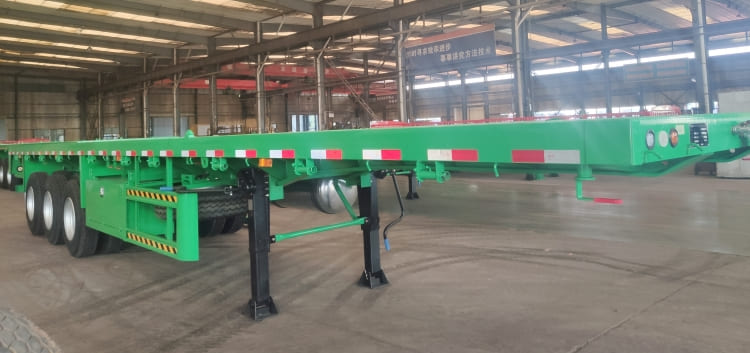

3 Axle 48 Foot Flatbed Semi Trailer for Sale Manufacturers in Port Sudan

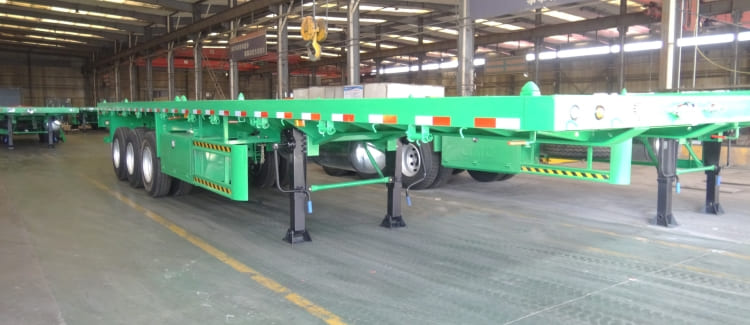

3 Axle 48 Foot Flatbed Semi Trailer for Sale Manufacturers in Port Sudan

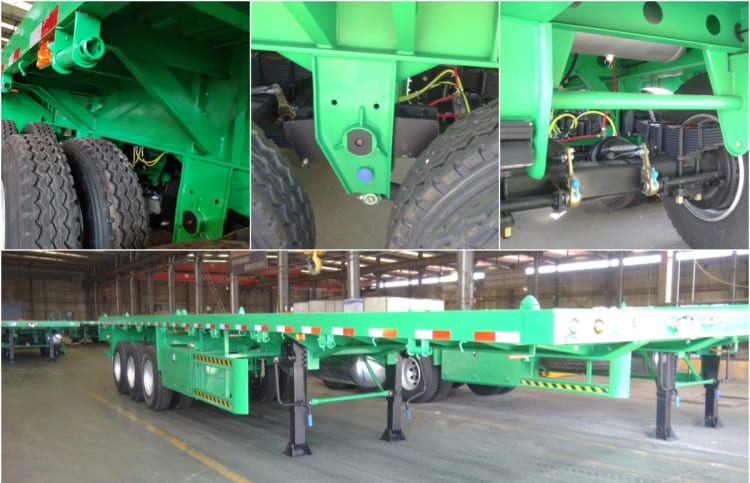

3 Axle 48 Foot Flatbed Semi Trailer for Sale Manufacturers in Port Sudan

48 Foot Flatbed Trailer Specification :

Model: 3 axle 48 foot flatbed trailers for sale

Transport: 20ft, 40ft container or bulk cargo

Loading capacity: 60-80 Tons

Overall dimension: 12385mm * 2490mm *1470mm

Main Beam: height: 500mm, upper plate:14mm, middle plate:8mm, bottom plate:16mm, material: Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Walking system：

Axles: 3 axles , 13t/16t, FUWA/ BPW/TITAN

Suspension: Heavy duty mechanical suspension/airbag suspension

Spring Leaf: 90(Width)mm*13(Thickness)mm*10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Accessories :

Twist Locks: 4,8,12 sets (lifting or screw type)

ABS: Optional

Langing gear: JOST/FUWA Brand

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

LED：LED lights

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

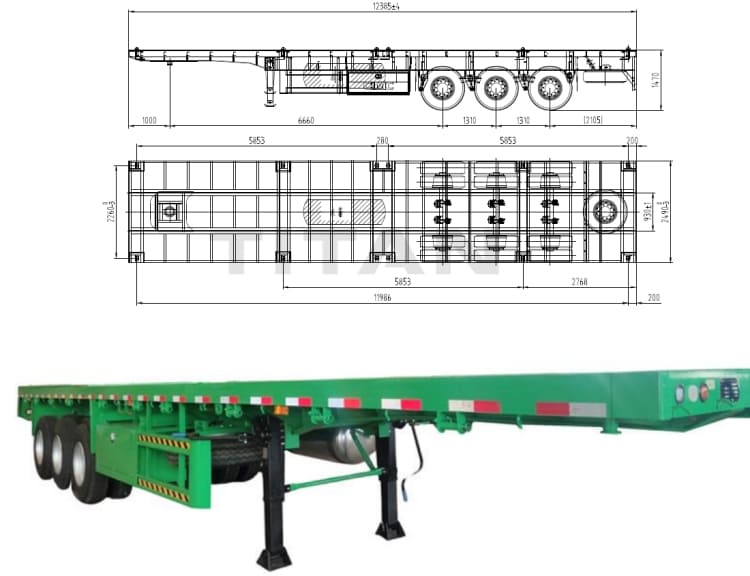

The Drawing of 3 Axle 48 Foot Flatbed Semi Trailer for Sale

Package of Flatbed Semi Trailer :

To save shipping costs for our customers, we have a professional team to pack 3 axle flatbed trailers for sale. Up to 3 flatbed semi trailer for sale can be packed into one container. In this way, we can minimize the bulk of the trailer, thus saving on ocean freight.

If you buy two flatbed semi trailer together, we can put them in a container, the container can protect the trailer from rain and sea water, to maximize the protection of the flatbed semi trailer. To prevent rust, TITAN will also spray wax on the trailer before shipping, even if it rains during transportation, our trailer will not rust.

Two 3 Axle 48 Foot Flatbed Semi Trailer for Sale are Packed Together

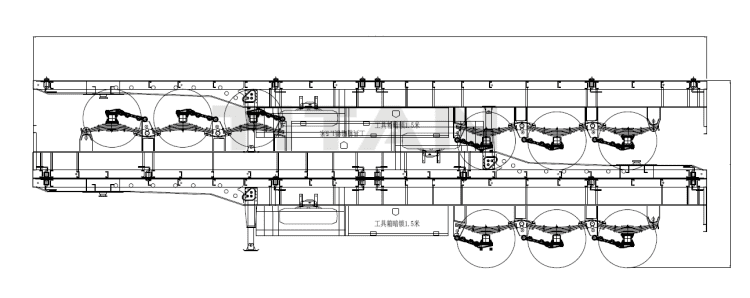

Three 3 Axle 48 Foot Flatbed Semi Trailer for Sale are Packed Together

Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
