4 Axles 40/20 Ft Flatbed Semi Trailers with Boards

Flatbed Semi Trailer Description :

A flatbed semi trailer for sale is a transport trailer specially used for carrying containers. Of course, it can also be used to load bulk cargo. The size of the loading part of the  semi flatbed trailers for sale is determined according to the size of the standard container, and a twist-lock device for fixing the container is provided at the position corresponding to the four corners of the bottom of the container.

The flatbed semi trailer is divided into flat type and skeleton type. The former has a flat cargo platform and can also be used to transport ordinary long-sized goods; the latter has no cargo platform, and the container is mounted on the chassis frame and fixed by a twist lock device.

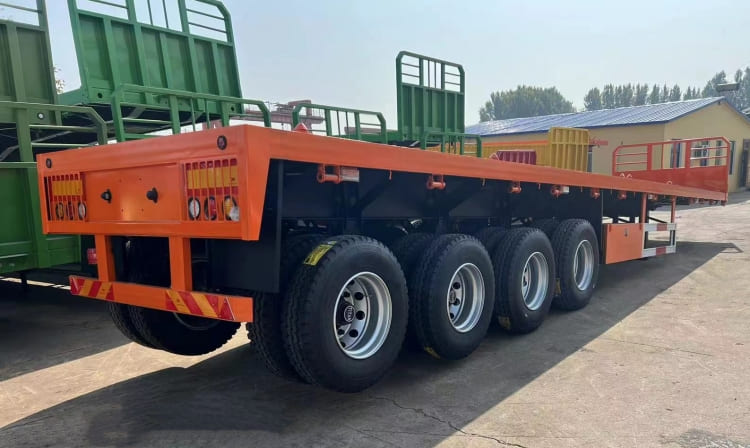

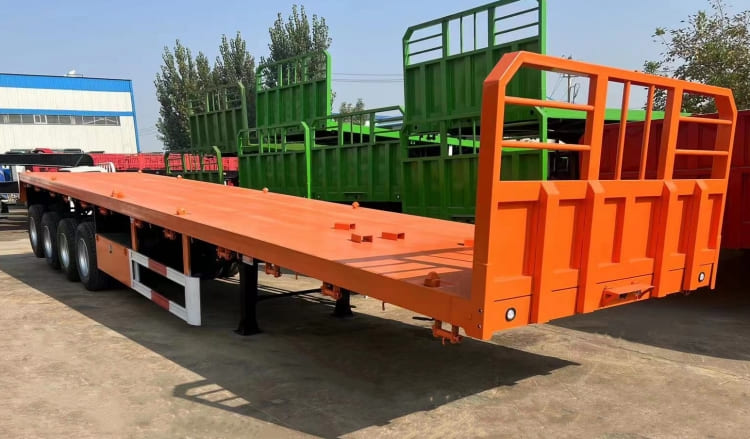

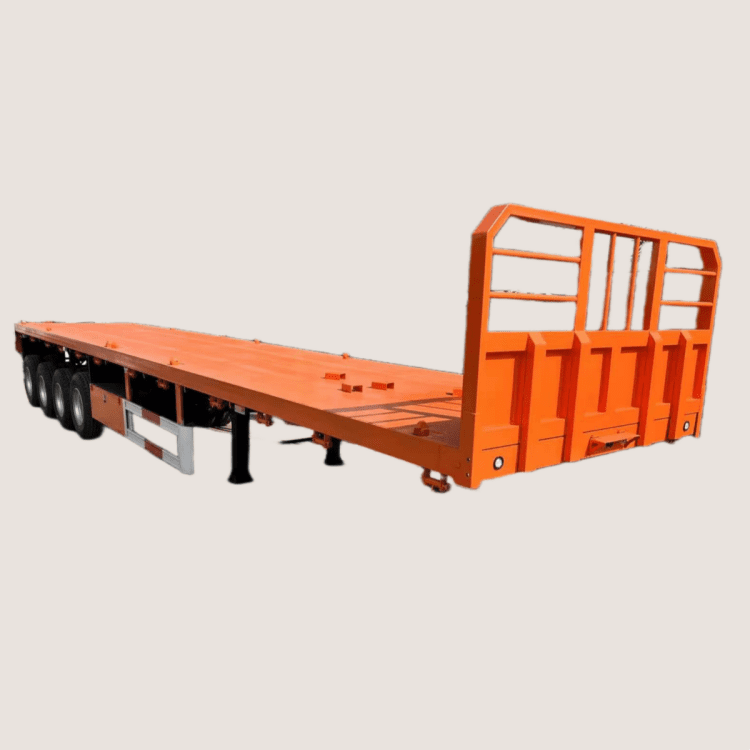

4 Axles 40/20 Ft Flatbed Semi Trailers with Boards for Sale in Congo Banana

4 Axles 40/20 Ft Flatbed Semi Trailers with Boards for Sale in Congo Banana

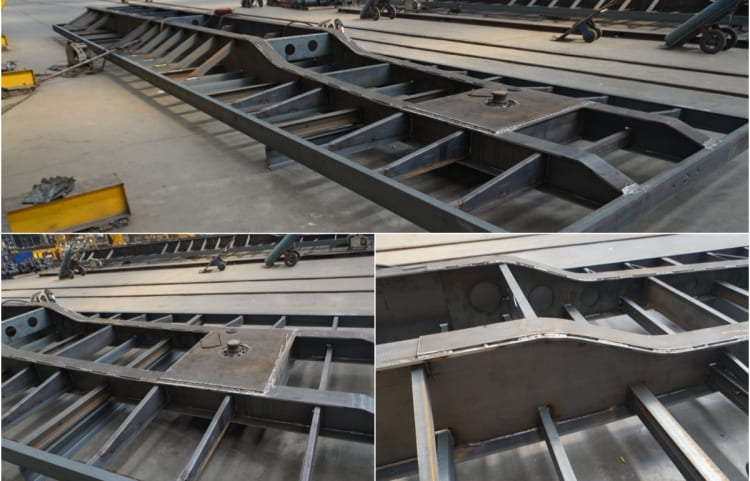

The Factroy show of 4 Axles 40/20 Ft Flatbed Semi Trailers for Sale

4 Axle Flatbed Specification :

Model: 4 Axle 40 Ft Flatbed Trailer

Transport: 20ft, 40ft container or bulk cargo

Loading capacity: 60-80 Tons

Overall dimension: 14380mm * 2490mm *1470mm

Main Beam: height: 500mm, upper plate:14mm, middle plate:8mm, bottom plate:16mm, material: Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Walking system：

Axles: 4 axles , 13t/16t, FUWA/ BPW/TITAN

Suspension: Heavy duty mechanical suspension/airbag suspension

Spring Leaf: 90(Width)mm*13(Thickness)mm*10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Tire: 16 units, 12.00R22.5 or 315/80R22.5

Accessories :

Twist Locks: 4,8,12 sets (lifting or screw type)

ABS: Optional

Langing gear: JOST/FUWA Brand

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

LED：LED lights

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

Advantages of 4 Axles Flatbed Trailers :

1. TITAN can provide you with a variety of semi flatbed trailers products for sale to meet your individual transportation needs, such as this flatbed semi trailer with boards. Strong load capacity and wide range of uses.

2. The most important suspension in the walking system, we use durable mechanical widening spring suspension to ensure stability and safety. In addition we can also provide air suspension and single point suspension.

3. The flatbed trailer adopts a new special design with multiple reinforcements, and the maximum carrying capacity of the trailer reaches 80 tons. No matter how complicated the road conditions are, it can handle it with ease.

4. There are two kinds of flatbed semi trailer for sale traction pin all over the world, TITAN will give both of them to our customer to meet all the need of our customer.

Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click "TITAN Flatbed Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
